| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | H01MA |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000sets/M |
| Product Name: | SOFT JAWS FOR HOWA BRAND CHUCK | Material: | 45#Steel |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision/For HOWA |
| Usage: | Service: | ODM/OEM Is Available | |
| Highlight: | aluminum soft jaws, cnc soft jaws |
||

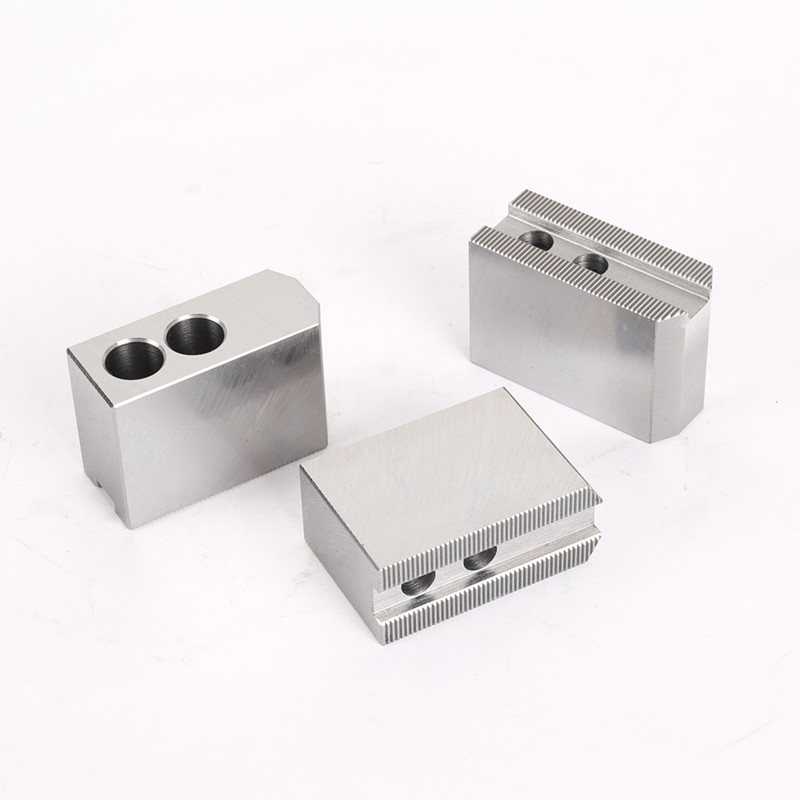

SOFT JAWS FOR HOWA BRAND CHUCK
SOFT JAWS FOR HOWA BRAND CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of Howa/Samchully/Auto-strong/SMW/Kitagawa/Soul/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

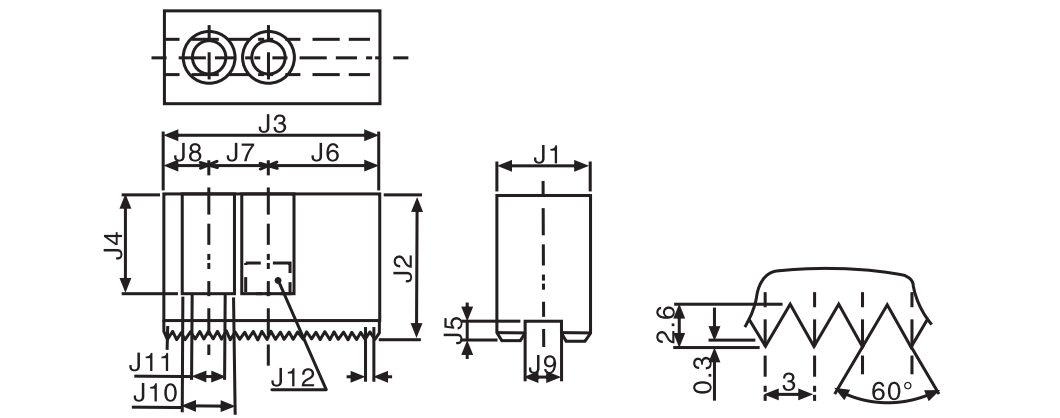

Chuck No: | Size | Jaw number | Serration Pitch | J1 | J2 | J3 | J4 | J5 | J6 | J7 | J8 | J9 | J10 | J11 | J12 | Weight KG(1Pcs) |
| H01MA | 6 | 401-062-0-000 | 3 | 40 | 55 | 87 | 40 | 6 | 51 | 20 | 16 | 12 | 17.5 | 11 | M10 | 1.4 |
| H01MA | 8 | 401-062-1-000 | 3 | 40 | 60 | 102 | 42 | 6 | 57 | 25 | 20 | 14 | 20 | 13.5 | M12 | 1.6 |
| H01MA | 10 | 401-062-2-000 | 3 | 50 | 70 | 123 | 52 | 6 | 63 | 30 | 30 | 16 | 20 | 13.5 | M12 | 3 |
| H01MA | 12 | 401-062-3-000 | 3 | 62 | 80 | 144 | 63 | 6 | 75 | 30 | 39 | 18 | 23 | 15.5 | M14 | 5 |
Other option of serration pitch: 3.0*60°
Subject to technical changes
