| Product Name: | SOFR JAWS FOR PULL BACK POWER CHUCKS | Material: | 45#steel |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision/Pull Back |
| Usage: | Service: | ODM/OEM Is Available | |
| Highlight: | machining soft jaws, cnc soft jaws |
||

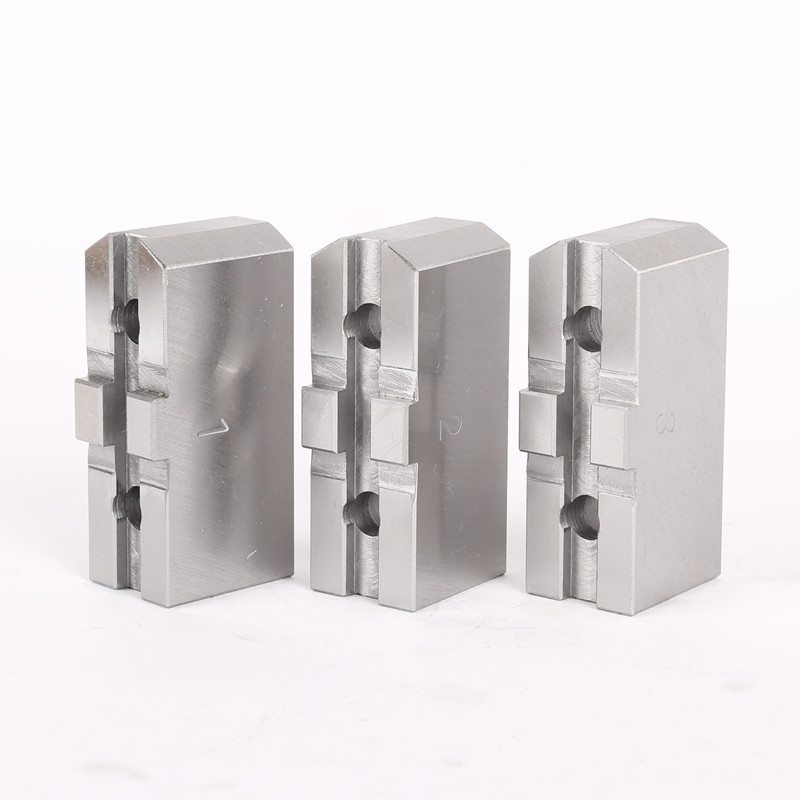

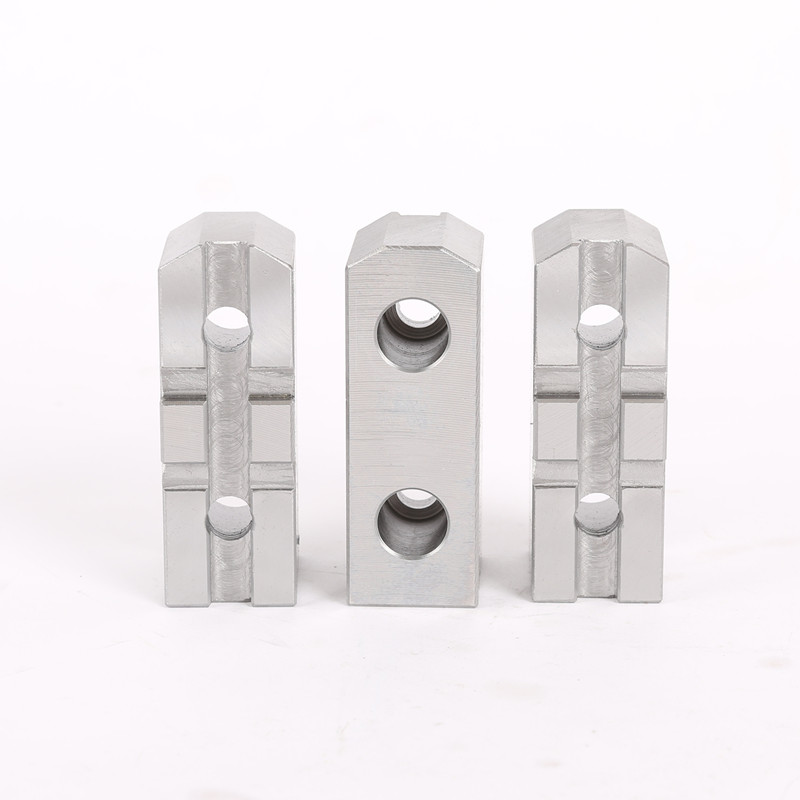

SOFR JAWS FOR PULL BACK POWER CHUCKS
SOFR JAWS FOR PULL BACK POWER CHUCKS
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of Autogrip/SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.
Size table UNIT:mm

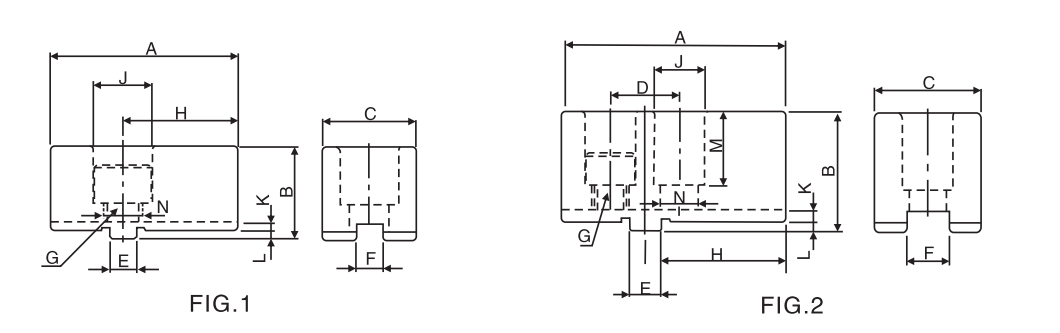

MODEL SPEC | A | B | C | D | E | F | G | H | J | K | L | M | N | Reference drawing |
| S-04 | 52 | 19.5 | 25 | 8 | 8 | M10*1.5P | 30 | 17.5 | 2.5 | 2.5 | 13 | 11 | fig.1 | |
| S-05 | 56 | 27 | 30 | 8 | 8 | M10*1.5P | 33 | 20 | 2.5 | 2.5 | 15 | 11 | fig.2 | |
| S-06 | 70 | 34 | 35 | 10 | 10 | M14*2P | 43 | 23 | 3 | 3 | 21 | 15.5 | fig.2 | |
| S-08 | 84 | 44.5 | 40 | 26 | 12 | 16 | M12*1.75P | 53 | 20 | 3.5 | 3.5 | 29 | 13.5 | fig.2 |
| S-10 | 100 | 49.5 | 50 | 32 | 15 | 18 | M14*2P | 62 | 23 | 3.5 | 3.5 | 32 | 15.5 | fig.1 |
| S-12 | 120 | 54.5 | 60 | 36 | 17 | 20 | M16*2P | 78 | 26 | 3.5 | 3.5 | 36 | 17.5 | fig.1 |
| S-15 | 165 | 60 | 70 | 40 | 20 | 24 | M17*2P | 105 | 26 | 5 | 5 | 40 | 18 |
Subject to technical changes
