| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | JP-05,JP-06,JP-08,JP-10,JP-06L,JP-08L |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000sets/M |
| Product Name: | JP SERIES HIGH SPEED DIAPHRAGM POWER CHUCK FOR HIGH PRECISION TURNING WORK | Material: | Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | power operated chucks, power collet chuck |
||

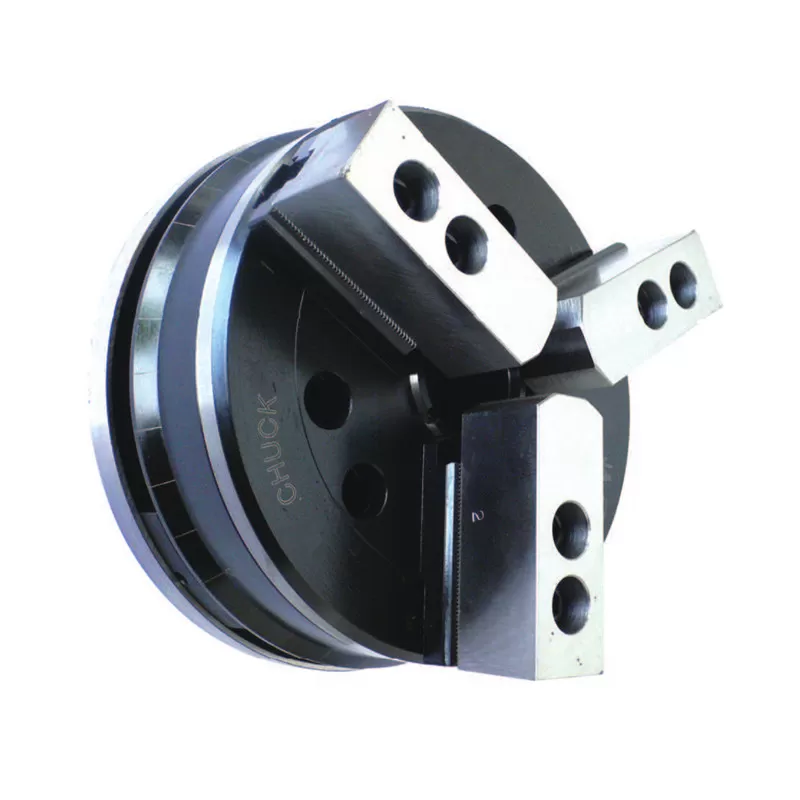

JP SERIES HIGH SPEED DIAPHRAGM POWER CHUCK FOR HIGH PRECISION TURNING WORK
Brand:NTH
JP SERIES HIGH SPEED DIAPHRAGM CHUCK
0.005mm repeatability.
Anti centrifugal force design. Clamping force remains high in high R.P.M.
Integrated dynamic-balancing-weights for fine balance a djustment .
No sliding parts to wear out.
Clamping force/stroke is proportional to actuating force.
Ideal for fragile parts, or thin-wall parts clamping.
JPL SERIES DIAPHRAGM CHUCK FOR GRINDERS
0.005mm repeatability.
Compact size. Light weighted.
Special for precison grinders.
No sliding parts to wear out.
Clamping force/stroke is proportional to actuating force.
Ideal for fragile parts, or thin-wall parts clamping.
Product introduction
JP/JPL Series Diaphragm Chuck performs its clamping movement by material deformation which features high repeatability and low maintenance requirements. Compared to regular wedge-hook power chucks, JP/JPL diaphragm chuck owns high repeatability of 0.005mm, and longer product life since JP/JPL has no clearance, no sliding parts to wear out. JP is designed for high speed turning machines. It incorporates balancing-weights to eliminate centrifugal force. JPL is specially designed for precision grinders. The chuck is with low profile and mass which enable your machines to have high performance and high chucking accuracy.
Production Catalogue Download:JP PDF.pdf

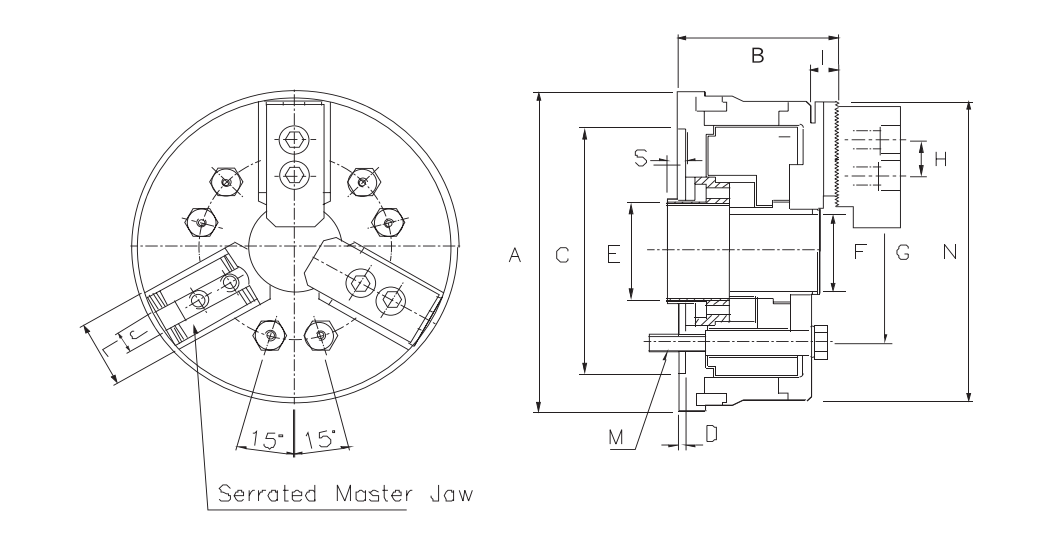

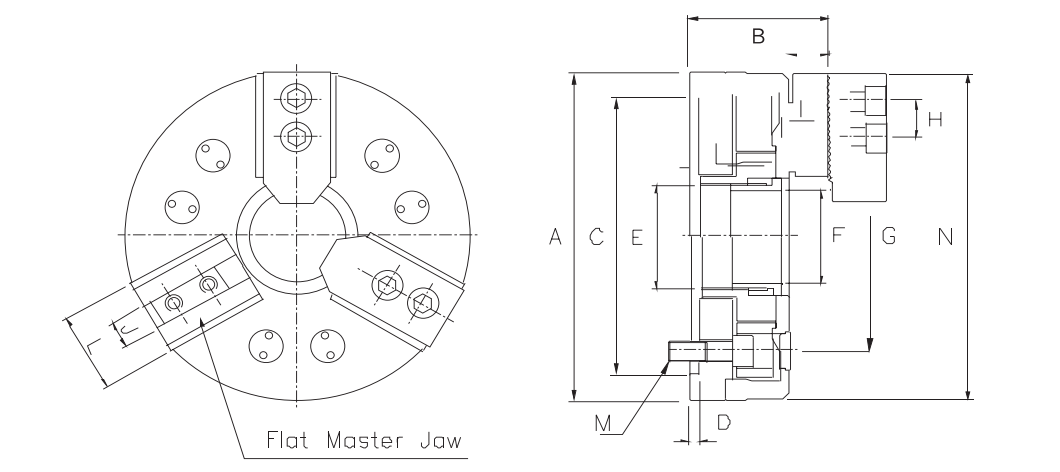

| Model | JP-05 | JP-06 | JP-08 | JP-10 | JP-06L | JP-08L |
|---|---|---|---|---|---|---|
| A | 147(5.79〞) | 182(7.17〞) | 232(9.13〞) | 267(10.51〞) | 167(6.57〞) | 217(8.54〞) |
| B | 68(2.68〞) | 87(3.42〞) | 98(3.86〞) | 105(4.13〞) | 65.5(2.58〞) | 71.5(2.82〞) |
| C(H6) | 110(4.33〞) | 140(5.51〞) | 170(6.69〞) | 220(8.66〞) | 140(5.51〞) | 170(6.69〞) |
| D | 4(0.16〞) | 4.5(0.16〞) | 4.5(0.16〞) | 5(0.20〞) | 5(0.20〞) | 5(0.20〞) |
| E | M40×P1.5 | M55×P2.0 | M60×P2.0 | M85×P2.0 | M55×P2.0 | M60×P2.0 |
| F | 33(1.30〞) | 44(1.73〞) | 50(1.97〞) | 75(2.95〞) | 44(1.73〞) | 52(2.05〞) |
| G(P.C.D) | 82.6(3.25〞) | 104.8(4.13〞) | 133.4(5.25〞) | 171.4(6.75〞) | 104.8(4.13〞) | 133.4(5.25〞) |
| H | 14(0.55〞) | 20(0.79〞) | 25(0.98〞) | 30(1.18〞) | 20(0.79〞) | 25(0.98〞) |
| I | 13(0.51〞) | 15(0.60〞) | 17(0.67〞) | 17(0.67〞) | 17.5(0.69〞) | 18.5(0.73〞) |
| J | 10(0.39〞) | 12(0.47〞) | 14(0.55〞) | 16(0.63〞) | 12(0.47〞) | 14(0.55〞) |
| L | 30(1.18〞) | 38(1.50〞) | 42(1.65〞) | 47(1.85〞) | 38(1.50〞) | 42(1.65〞) |
| M | M10×3 | M10×6 | M12×6 | M16×6 | M10×6 | M12×6 |
| N | 136(5.35〞) | 170(6.70〞) | 217(8.54〞) | 256(10.08〞) | 165(6.50〞) | 220(8.66〞) |
| S | 14(0.55〞) | 11(0.43〞) | 11(0.43〞) | |||
| Max rpm | 8000 | 7500 | 6500 | 5500 | 600 | 600 |
| Max. Axial Force | 1750kgf (3850lbf) | 2250kgf (4950lbf) | 3500kgf (7700lbf) | 4750kgf (10450lbf) | 2250kgf (4950lbf) | 3500kgf (7700lbf) |
| Matching Chuck | 5〞 chuck | 6〞 chuck | 8〞 chuck | 10〞chuck | 6〞 chuck | 8〞chuck |
| Adapter plate | 110mm A2-4 | 140mm A2-5 | 170mm A2-6 | 220mm A2-6/A2-8 | 140mm A2-4/A2-5/A2-6 | 170mm A2-6 |
| N.W. | 5.5kgs(12.1lbs) | 11.0kgs(24.2lbs) | 20.0kgs(44.0lbs) | 30.5kgs(67.1lbs) | 5.5kgs(12.1lbs) | 8.0kgs(17.6lbs) |
Subject to technology changes without prior information
Non-standard requirements can be made
