| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | MC-06,MC-08,MC-10,MC-12, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | -- |
| Product Name: | MC SUPER THIN SQUARE CHUCKS | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | lathe scroll chuck, cnc lathe chuck |
||

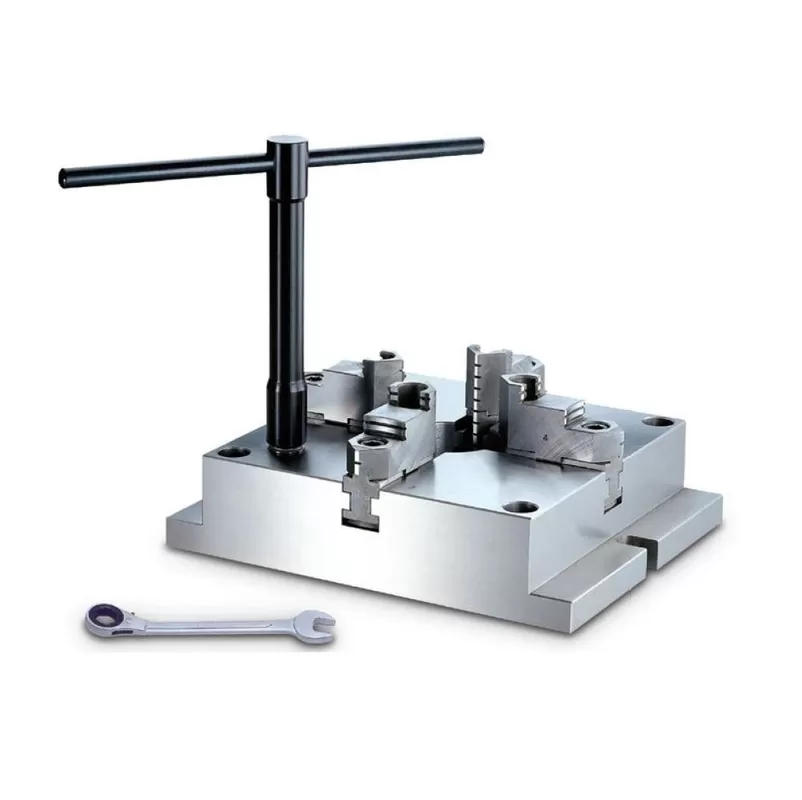

MC SUPER THIN SQUARE CHUCKS
MC SQUARE SHUCKS

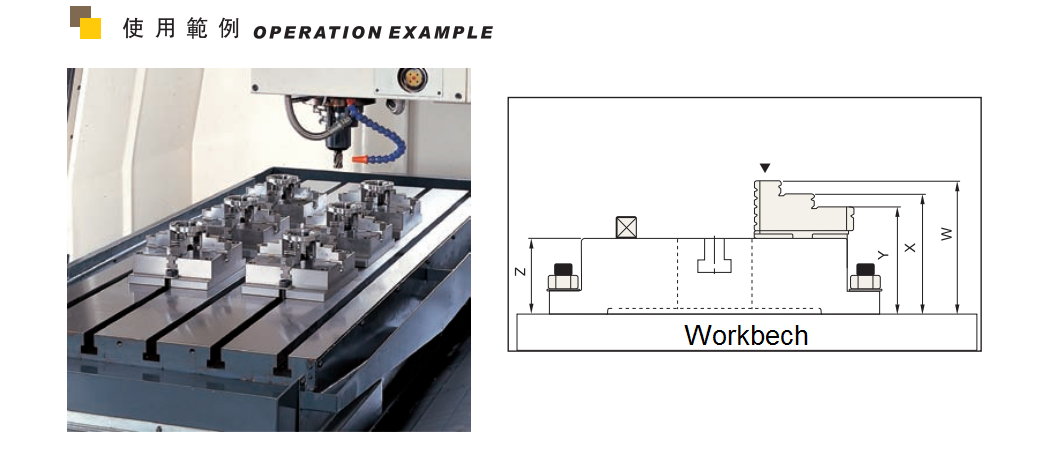

1. MC chucks are precisely ground,the tolerances of W,X,Y,Z among chucks are with in 0.05mm.
2. Soft jaws can be used alternatively for machining special shaped work pieces,to substitute for designing and making a lot of jings for this purpose.
3. The repetitive gripping accuracy with the hard jaws are with in 0.02mm.
4. Parallel gripping accuracy with hard jaws can be controlled with in 0.05mm after aligning sides of chucks.
Specification UNIT:mm
| MODEL/SPEC | O.D.Clamping Range mm | I.D.Clamping Range mm | Weight kg |
|---|---|---|---|
| MC-06 | Ø4-Ø128 | Ø55-Ø128 | 11.4 |
| MC-08 | Ø5-Ø162 | Ø65-Ø162 | 18.6 |
| MC-10 | Ø6-Ø200 | Ø72-Ø200 | 31.6 |
| MC-12 | Ø10-Ø265 | Ø90-Ø265 | 56.6 |

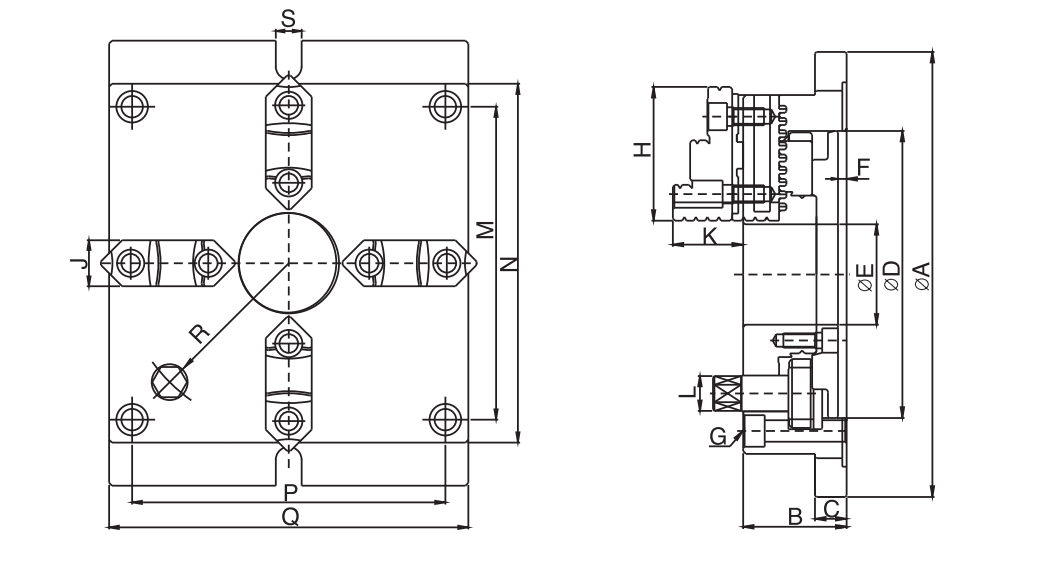

| MODEL/SPEC | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MC-06 | 215 | 57 | 18 | 130 | 40 | 5.5 | 4-M10x1.5P | 68 | 26 | 39 | 14 | 144 | 165 | 144 | 165 | 66 | 18 |
| MC-08 | 250 | 65 | 20 | 160 | 55 | 6 | 4-M12x1.75P | 82 | 28 | 43 | 17 | 174 | 200 | 174 | 200 | 83 | 18 |
| MC-10 | 310 | 72 | 22 | 200 | 70 | 6 | 4-M14x2P | 93 | 32 | 50 | 21 | 218 | 250 | 218 | 250 | 104 | 18 |
| MC-12 | 380 | 82 | 25 | 260 | 100 | 7 | 4-M16x2P | 118 | 40 | 56 | 23 | 274 | 310 | 274 | 310 | 135 | 22 |
Subject to technology changes without prior information
Non-standard requirements can be made
