| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | TNT-07,TNT-09 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | -- |
| Product Name: | TNT 2 JAW STEEL BODY CHUCKS | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | manual lathe chuck, lathe scroll chuck |
||

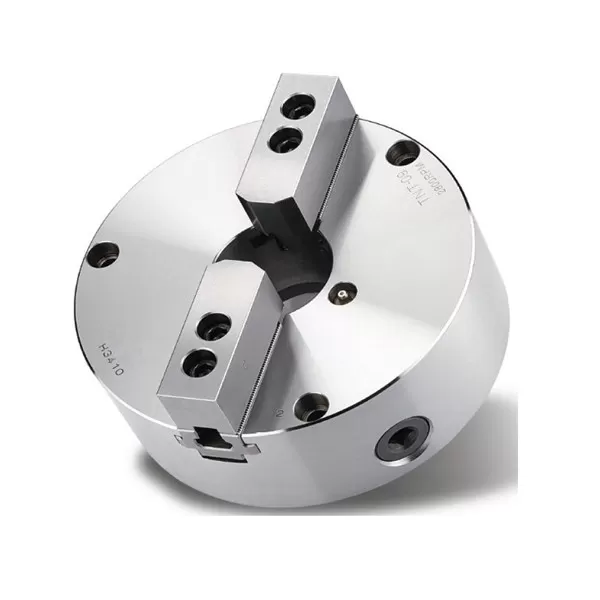

TNT 2 JAW STEEL BODY CHUCKS
Steel body chucks:

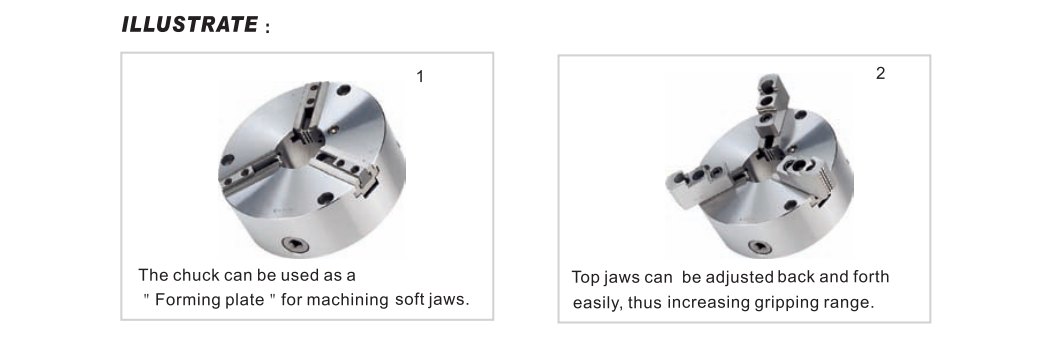

1. Can be used as a"Forming plate"for maching soft jaws.
2. Hard jaws and soft jaws can be adjusted just like on a power Chuck to increase the gripping range.
3. Hard jaws as well as Soft jaws are interchangeable with those of power chucks.
4. Chuck Body is made of steel to enhance safety oprations for high speed machining.
5. The Chuck Handle can be operated easily and smoothly.
Specification UNIT:mm
| MODEL/SPEC | Max. RPM | O.D.Clamping Range mm | I.D.Clamping Range mm | Weight kg |
|---|---|---|---|---|
| TNT-07 | 3200 | Ø8-Ø235 | Ø66-Ø235 | 14.4 |
| TNT-09 | 2800 | Ø11-Ø280 | Ø85-Ø280 | 22.3 |

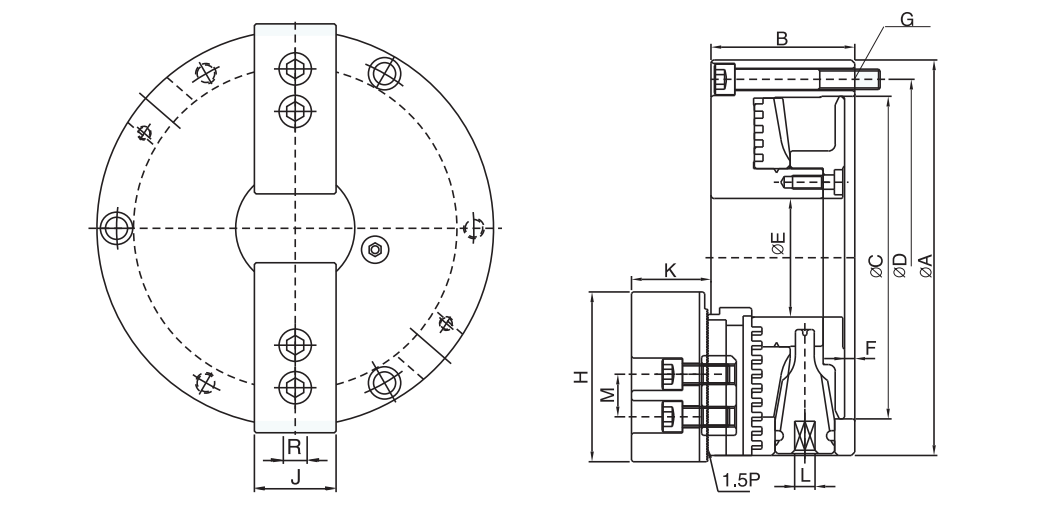

| MODEL/SPEC | A | B | C | D | E | F | G | H | J | K | L | M | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TNT-07 | 193 | 78 | 155 | 172 | 58 | 5 | 3-M10×1.5P | 73 | 31 | 38 | 11 | 20 | 12 |
| TNT-09 | 233 | 85 | 190 | 210 | 70 | 5.5 | 3-M12×1.75P | 95 | 35 | 40 | 12 | 25 | 14 |
Subject to technology changes without prior information
Non-standard requirements can be made
