| Product Name: | DIN6350 3DACT 3 JAW ADJUSTMENT STEEL BODY SCROLL CHUCKS | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | lathe scroll chuck, cnc lathe chuck |
||

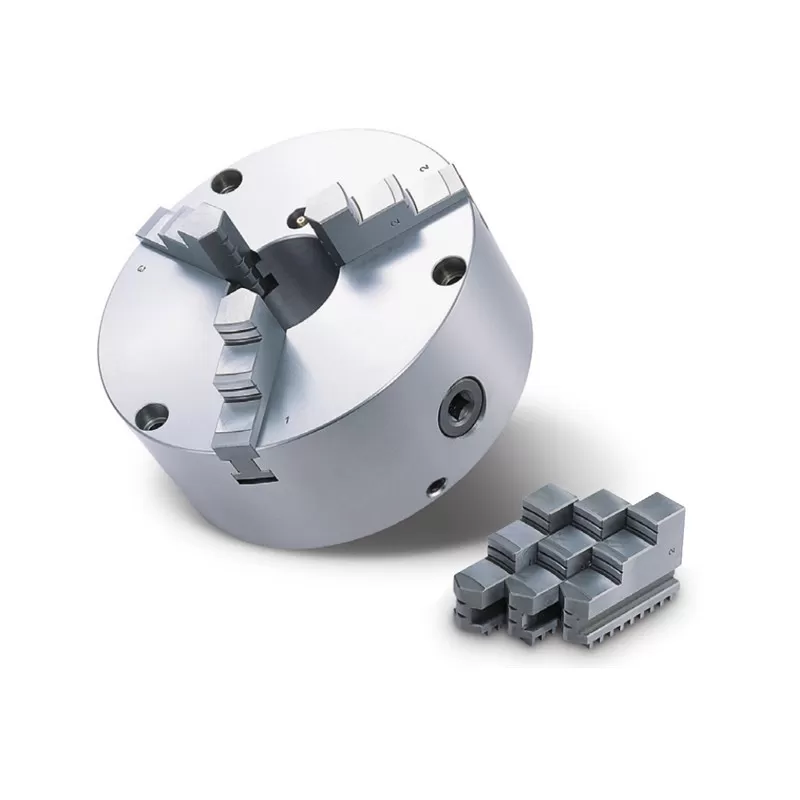

DIN6350 3DACT 3 JAW ADJUSTMENT STEEL BODY SCROLL CHUCKS
Specification UNIT:mm
| MODEL/SPEC | Max. RPM | O.D.Clamping Range mm | I.D.Clamping Range mm | Weight kg |
|---|---|---|---|---|
| FKT-07 | 3500 | Ø8-Ø180 | Ø62-Ø170 | 14.1 |
| FKT-09 | 2900 | Ø11-Ø220 | Ø70-Ø210 | 22 |
| FKT-10 | 2500 | Ø12-Ø260 | Ø80-Ø250 | 33.5 |
| FKT-12 | 2200 | Ø15-Ø300 | Ø90-Ø290 | 46.1 |

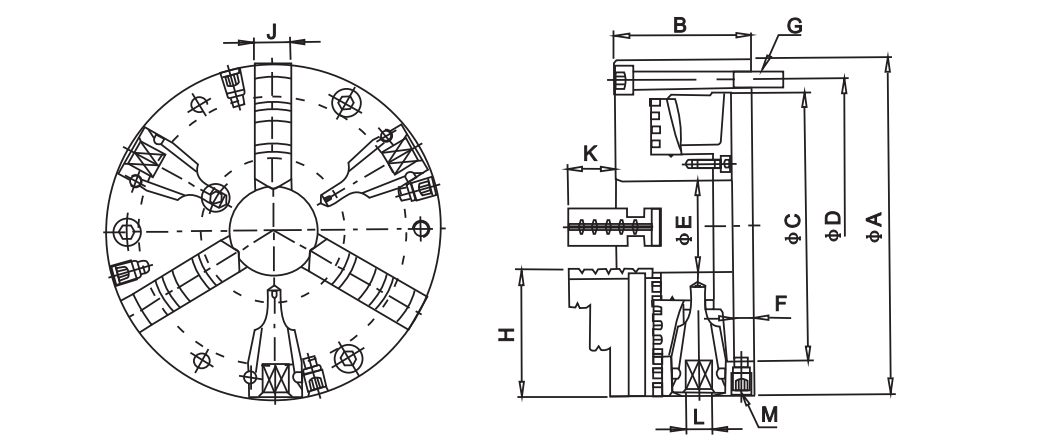

| MODEL/SPEC | A | B | C | D | E | F | G | H | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FKT-07 | 193 | 85 | 155 | 172 | 58 | 12 | 3-M10×1.5P | 82 | 28 | 43 | 11 | 4-M10×1.5P |
| FKT-09 | 233 | 92 | 190 | 210 | 70 | 12.5 | 3-M12×1.75P | 93 | 32 | 51 | 12 | 4-M10×1.5P |
| FKT-10 | 275 | 98 | 230 | 250 | 89 | 12.5 | 3-M12×1.75P | 102 | 35 | 54 | 12 | 4-M10×1.5P |
| FKT-12 | 310 | 111 | 260 | 285 | 105 | 14 | 3-M12×1.75P | 118 | 40 | 58 | 14 | 4-M12×1.75P |
Subject to technology changes without prior information
Non-standard requirements can be made
