| Product Name: | K13 SERIES 6JAW SELFCENTERING CHUCKS |
Material: | Cast Steel |
| Function: | Fixture/Gripping |
Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification |
Service: | ODM/OEM Is Accpetable |
| Highlight: |
lathe scroll chuck, cnc lathe chuck |

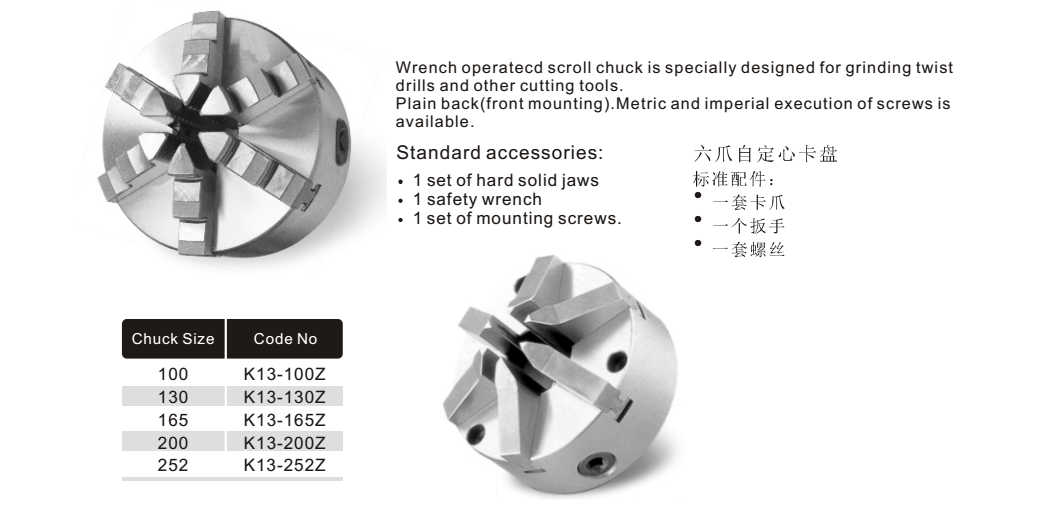

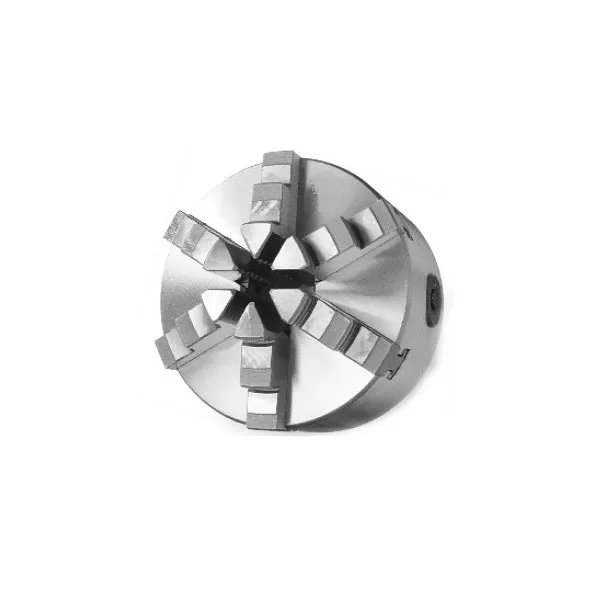

K13 SERIES 6JAW SELFCENTERING CHUCKS

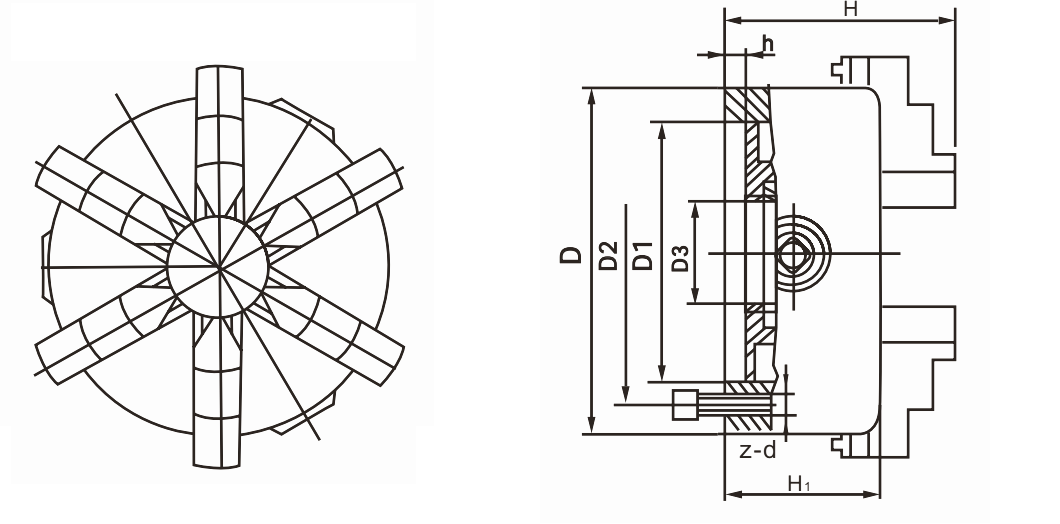

Code No | ChuckSize D | D1 | D2 | D3 | H | H1 | h | z-d | Net wt. Kg |
|---|
| K13-100 | 100 (4”) | 72 | 84 | 26 | 74.5 | 55 | 3 | 3-M8 | 3.2 |
| K13-130 | 130 (5”) | 100 | 115 | 35 | 86.5 | 58 | 5 | 3-M8 | 5.6 |
| K13-165 | 165 (6”) | 130 | 145 | 45 | 94 | 65 | 5 | 3-M8 | 8.5 |
| K13-200 | 200 (8”) | 165 | 180 | 65 | 109 | 75 | 6 | 3-M10 | 16 |
| K13-252 | 252 (10”) | 206 | 226 | 80 | 120 | 80 | 6 | 3-M12 | 26 |
