| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | GK12-80,GK12-85,GK12-100,GK12-110,GK12-125,GK12-140, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | -- |
| Product Name: | GK12 SERIES STEEL BODY 4-JAW SELF-CENTERING CHUCKS | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | lathe scroll chuck, cnc lathe chuck |
||

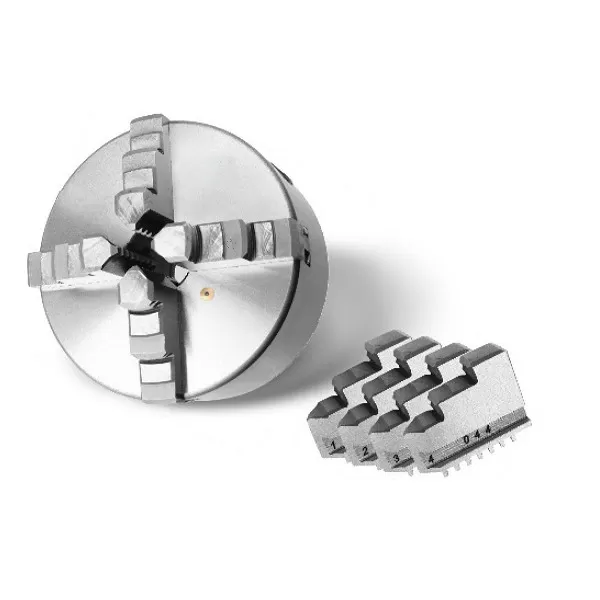

GK12 SERIES STEEL BODY 4-JAW SELF-CENTERING CHUCKS
Solid jaws

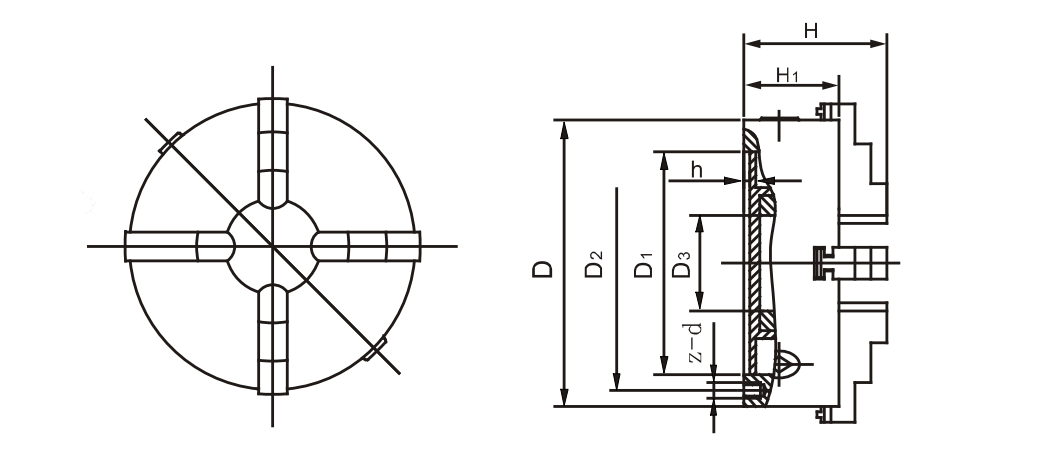

Code No | Chuck Size | D1 | D2 | D3 | H | H1 | h | z-d |
|---|---|---|---|---|---|---|---|---|
| GK12-80 | 80 | 56 | 67 | 16 | 66.5 | 50 | 4 | 3-M6 |
| GK12-85 | 85 | 62 | 72 | 18 | 66.5 | 50 | 4 | 3-M6 |
| GK12-100 | 100 | 70 | 83 | 22 | 74.5 | 55 | 3 | 3-M8 |
| GK12-110 | 110 | 80 | 95 | 27 | 74.5 | 55 | 3 | 3-M8 |
| GK12-125 | 125 | 95 | 108 | 30 | 84.5 | 58 | 4 | 3-M8 |
| GK12-140 | 140 | 105 | 120 | 40 | 84.5 | 58 | 4 | 3-M8 |
| GK12-160 | 160 | 125 | 140 | 45 | 94 | 65 | 5 | 6-M10 |
| GK12-200 | 200 | 160 | 176 | 65 | 109 | 75 | 5 | 6-M10 |
| GK12-250 | 250 | 200 | 224 | 80 | 120 | 80 | 5 | 6-M12 |
| GK12-315 | 315 | 260 | 286 | 100 | 156.5 | 90 | 6 | 6-M16 |
| GK12-400 | 400 | 330 | 362 | 130 | 173.5 | 100 | 6 | 6-M16 |
| GK12-500 | 500 | 420 | 458 | 210 | 205 | 115 | 6 | 6-M16 |
| GK12-630 | 630 | 545 | 586 | 252 | 220.5 | 135 | 7 | 6-M16 |
Two piece jaws
Code No | Chuck Size | D1 | D2 | D3 | H | H1 | h | z-d |
|---|---|---|---|---|---|---|---|---|
| GK12-125A | 125 | 95 | 108 | 30 | 84.5 | 58 | 4 | 3-M8 |
| GK12-140A | 140 | 105 | 120 | 40 | 84.5 | 58 | 4 | 3-M8 |
| GK12-160A | 160 | 125 | 140 | 45 | 94 | 65 | 5 | 6-M10 |
| GK12-200A | 200 | 160 | 176 | 65 | 109 | 75 | 5 | 6-M10 |
| GK12-250A | 250 | 200 | 224 | 80 | 120 | 80 | 5 | 6-M12 |
| GK12-315A | 315 | 260 | 286 | 100 | 156.5 | 90 | 6 | 6-M16 |
| GK12-400A | 400 | 330 | 362 | 130 | 173.5 | 100 | 6 | 6-M16 |
| GK12-500A | 500 | 420 | 458 | 210 | 205 | 115 | 6 | 6-M16 |
| GK12-630A | 630 | 545 | 586 | 252 | 220.5 | 135 | 7 | 6-M16 |
