| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH Cooperated Brand |
| Model Number: | SE-4,SE-6,SE-7, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SE 3 jaw strong scroll chuck A1 direct mounting 2 piece jaws | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Fixture/Gripping | Service: | ODM/OEM Is Accpetable |
| Highlight: | auto strong lathe chuck, strong chucks |
||
SE 3 jaw strong scroll chuck A1 direct mounting 2 piece jaws
3 jaw strong scroll chuck A1 direct mounting 2 piece jaws
SE types are specially meet for drilling*endmilling*tapping or grinding in tool grinders.
Huge bore diameter design for wider application of bar workpieces.
SE type feature gripping for thin tube and high roundness accuracy.
The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.

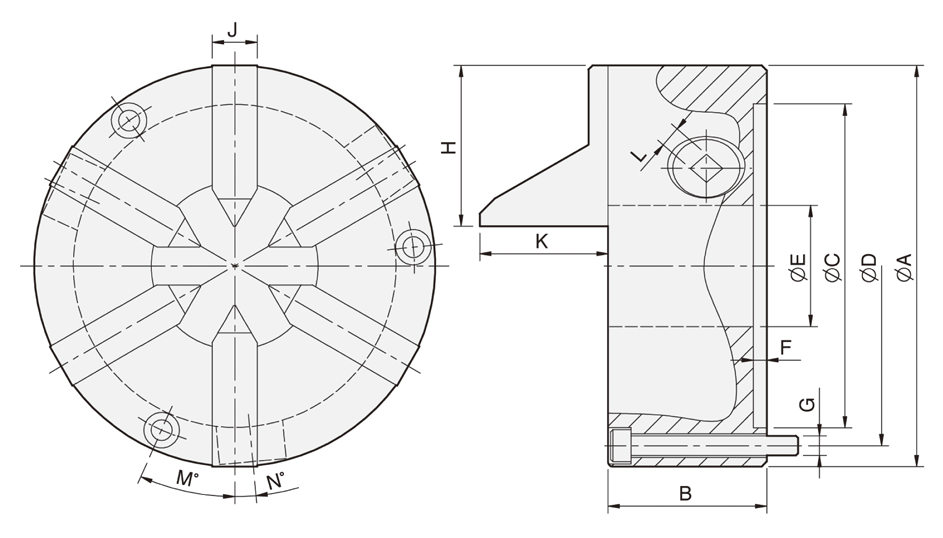

UNIT : mm
| NO | A | B | C | D | E | F | G | H | J | K | L | M | N |
| Grip | Max. | N.W. | Moment | Gripping |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SE-4 | 112 | 66 | 80 | 95 | 32 | 4.8 | 3-M8 | 45 | 14 | 39.7 | 8 | 30 | 6.5 | 1.6 | 440 | 1200 | 4 | - | Ø2-Ø32 |
| SE-6 | 165 | 67 | 130 | 147 | 51 | 5.5 | 3-M8 | 66.5 | 19 | 40.7 | 10 | 23.3 | 6.2 | 2.8 | 660 | 1200 | 9 | 0.03 | Ø3-Ø51 |
| SE-7 | 192 | 76.5 | 155 | 172 | 80 | 5.5 | 3-M10 | 77 | 21.5 | 61.5 | 11 | 24 | 5.3 | 3.6 | 850 | 1000 | 14 | 0.06 | Ø3-Ø81 |
