| Product Name: | V 3 jaw wedge type non through hole power chuck (adapter excluded) | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/High Quality | |
| Usage: | Gripping/Fixture | Service: | OEM/ODM Is Acceptable |
| Highlight: | auto strong chucks, auto strong lathe chuck |
||

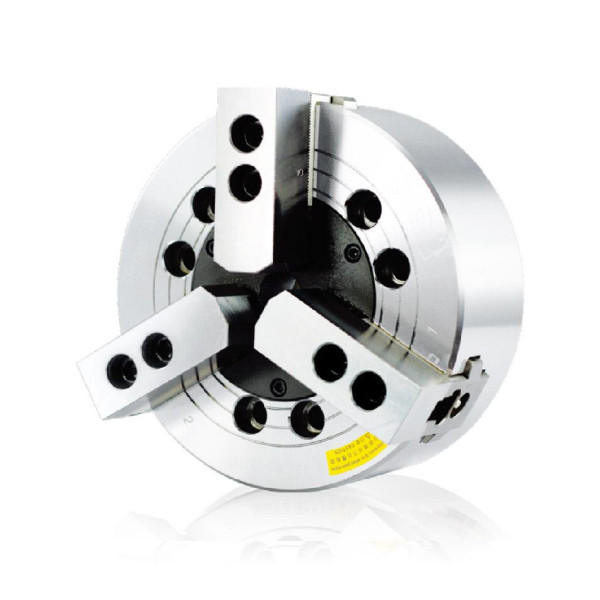

V 3 jaw wedge type non through hole power chuck (adapter excluded)
High performance :
Similar high performance with N series.
Chuck mounting screws :
Metric or UNC socket head cap screws are supplied for installing the chuck to the spindle.
UNIT : mm
SPEC | Plunger Stroke (mm) | RadialJaw.Stroke +(Manual setting (mm) | Max.Pull Force (kn) | Max.Gripping Force (kn) | Max.Operating Pressure (kgf/cm2) | Max.Speed (r.p.m.) |
|---|---|---|---|---|---|---|
| V-206 | 20 | 9.2 | 1835 | 5353 | 26.5 | 5200 |
| V-208 | 21 | 9.7 | 2549 | 7648 | 25.5 | 4500 |
| V-210 | 25 | 8.8 | 2957 | 11013 | 28.6 | 4000 |
| V-212 | 30 | 10.5 | 4181 | 15907 | 27.5 | 3300 |
| V-215 | 35 | 16 | 8362 | 25391 | 32.6 | 3000 |
| V-218 | 35 | 16 | 8362 | 25391 | 32.6 | 2700 |
SPEC | Weight (kg) | Moment Of Inertia I(kg‧m2) | Matching Cylinder | Matching Hard Jaw | Matching Soft Jaw | Gripping O.D. Range (mm) |
|---|---|---|---|---|---|---|
| V-206 | 12 | 0.045 | MS105C | HJ06 | HC06 | Ø18-Ø165 |
| V-208 | 23 | 0.137 | MS125C | HJ08 | HC08 | Ø26-Ø210 |
| V-210 | 34.5 | 0.3 | MS125C | HJ10 | HC10 | Ø26-Ø254 |
| V-212 | 61.3 | 0.72 | MS150C | HJ12-1 | HC12-1 | Ø26-Ø304 |
| V-215 | 101 | 1.8 | MS200C | HJ15-1 | HC15-1 | Ø68-Ø381 |
| V-218 | 116 | 2.9 | MS200C | HJ15-1 | HC15-1 | Ø130-Ø450 |

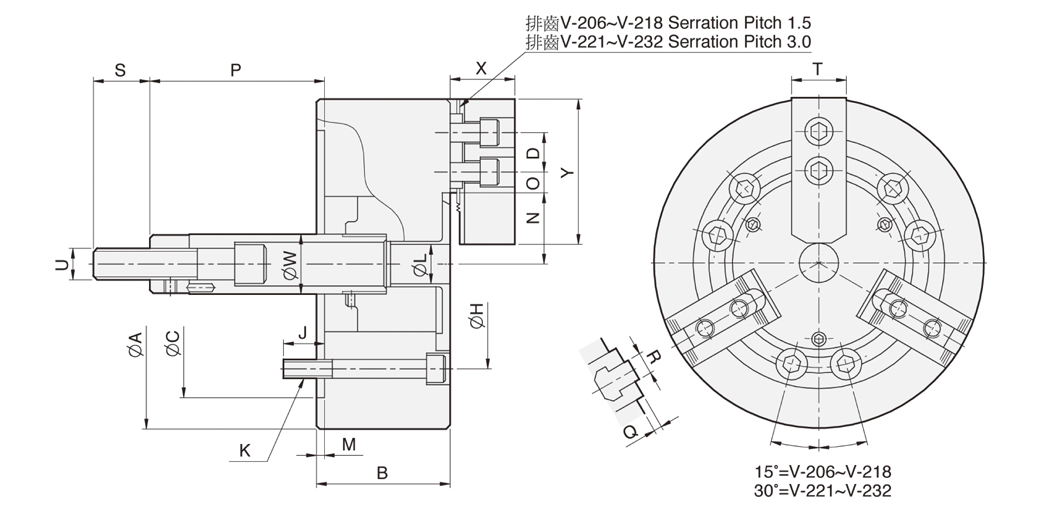

| DIM Model | A | B | C(H6) | D | H | J | K | L | M | Nmax. | Omax. | Omin. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V-206 | 165 | 74 | 140 | 20 | 104.8 | 14 | 6-M10x70 | 21 | 5 | 38.7 | 14.75 | 7.25 |
| V-208 | 210 | 85 | 170 | 25 | 133.4 | 20 | 6-M12x85 | 25 | 5 | 46.85 | 22.25 | 10.25 |
| V-210 | 254 | 89 | 220 | 30 | 171.5 | 18 | 6-M16x85 | 34 | 5 | 51.1 | 30.75 | 11.25 |
| V-212 | 304 | 106 | 220 | 30 | 171.5 | 24 | 6-M16x105 | 34 | 6 | 61 | 48.75 | 12.75 |
| V-215 | 381 | 114 | 300 | 43 | 235 | 29 | 6-M20x115 | - | 6 | 77.5 | 50.25 | 23.25 |
| V-218 | 450 | 114 | 300 | 43 | 235 | 29 | 6-M20x115 | - | 6 | 108 | 50.25 | 23.25 |
| DIM Model | Pmax. | Pmin. | Q | R | S | T | Umax. | W | X | Y |
|---|---|---|---|---|---|---|---|---|---|---|
| V-206 | 104.6 | 84.6 | 4 | 12 | 36 | 31 | M16x2.0 | 34 | 39 | 73 |
| V-208 | 132 | 111 | 5 | 14 | 36 | 35 | M20x2.5 | 38 | 41 | 95 |
| V-210 | 158 | 133 | 5 | 16 | 36 | 40 | M20x2.5 | 45 | 46 | 110 |
| V-212 | 163 | 133 | 5 | 18 | 36 | 50 | M20x2.5 | 50 | 54 | 130 |
| V-215 | 104 | 69 | 2 | 25.5 | 55 | 50 | M30x3.5 | 60 | 63 | 165 |
| V-218 | 92 | 57 | 2 | 25.5 | 55 | 50 | M30x3.5 | 60 | 63 | 16 |
