| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH Cooperated Brand |
| Model Number: | 850-375, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | 850-375 Pneumatic power chuck | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Fixture/Gripping | Service: | ODM/OEM Is Accpetable |
| Highlight: | auto strong chucks, strong chucks |
||

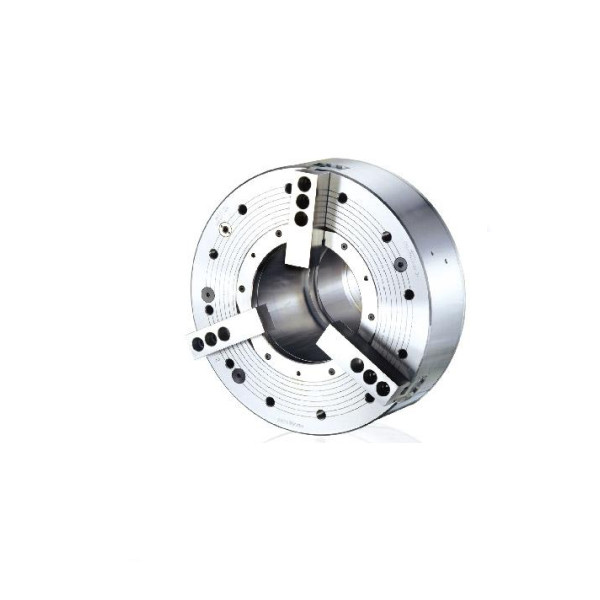

850-375 Pneumatic power chuck
Pneumatic power chuck
Air chuck for external clamping with built-in pneumatic cylinder.
Fast and clamping jaw stroke.
Clamping pressure control.
Clamping stroke control.
UNIT : mm
| SPEC Model | Through- Hole (mm) | Total Jaw | Fast Jaw | Clamping Jaw | Piston Area | Operating Pressure Min.-Max. (bar) | Gripping* Force (KN.) | Max. Speed | Weight (kg) | Moment Of Inertia I (kg‧m2 ) | Air* Consumption (L) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 850-375 | 375 | 25.4 | 13.4 | 12 | 1342 | 2-10 | 250 | 750 | 980 | 110 | 68 |

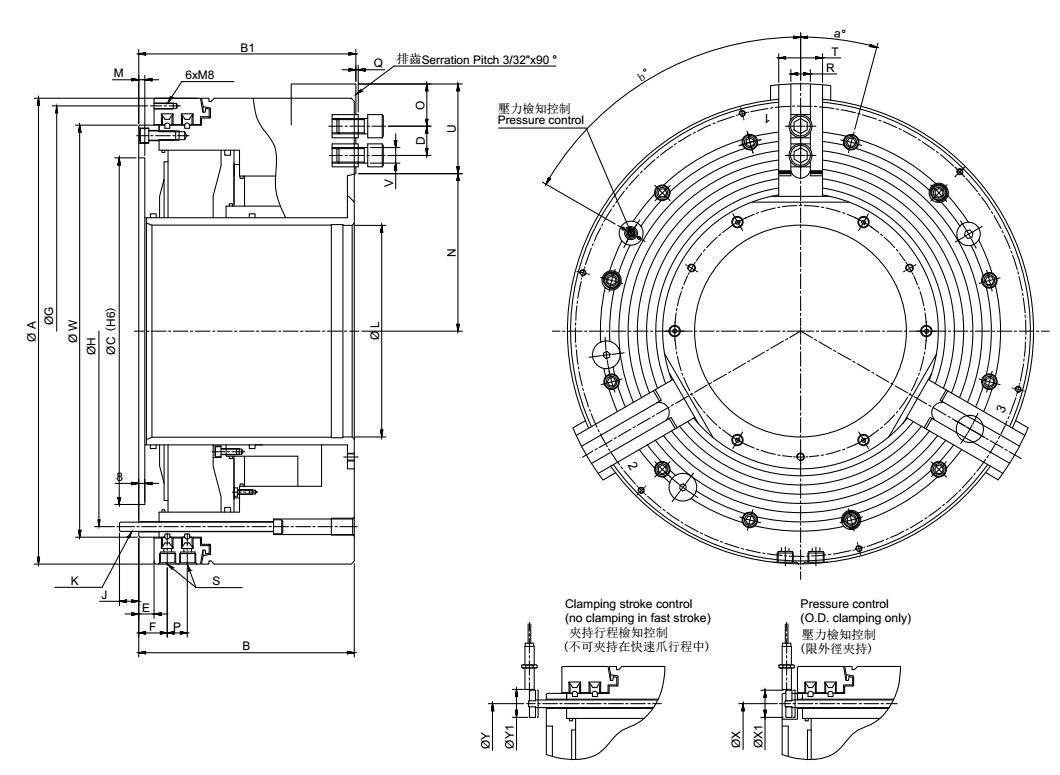

| SPEC Model | A | B | B1 | C | D Max./min. | E | F | G | H | J | K | L | M | N Max.Min. | O Min. | P | Q | R | S | T | U | V | W | X | X1 | Y | Y1 | a | b |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 850-375 | 850 | 352 | 354 | 700 | 140/47 | 25 | 44.5 | 830 | 745 | 30 | 12-M16 | 375 | 8 | 268/242.6 | 16 | 33 | 4 | 30 | G1/2 | 75 | 182 | M24 | 775 | 745 | 35 | 745 | 35 | 15 | 60 |
*When operating pressure at 6 bar.
