| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH Cooperated Brand |
| Model Number: | MR15035,MR20060,MR25060, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | MR Short Type Non Through Hole Rotary Hydraulic | Material: | |
|---|---|---|---|
| Function: | Feature: | Light/High Precision/Stable/High Quality | |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | ODM/OEM Is Available |
||

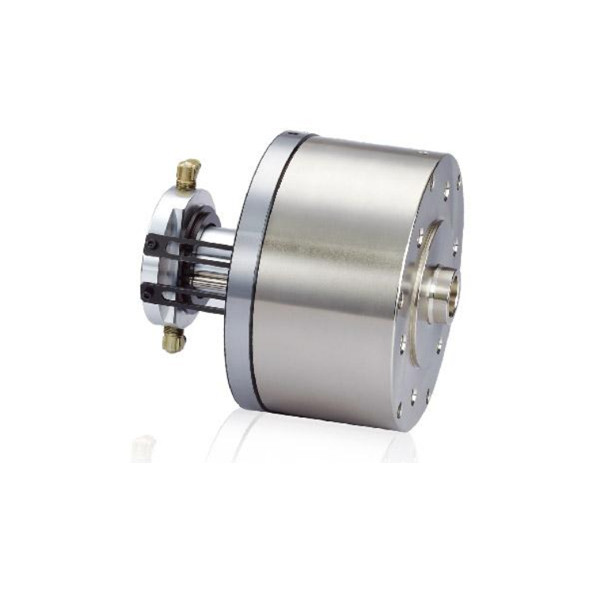

MR Short Type Non Through Hole Rotary Hydraulic
Light weight design can reduce the spindle loading for vertical lathe application.
Built-in check valve and proximity switch brackets.
Developed for rear locking installation.
UNIT : mm
| SPEC Model | Piston Dia. (mm) | Piston Area (cm2) Push Side / Pull Side | Max. Draw Bar Force KN(kgf) Push Side / Pull Side | Piston Stroke (mm) | Max.Operating Pressure MPa (kgf / cm2) | Max.Speed (r.p.m.) | Moment Of Inertia I (kg‧m2 ) | Weight (kg) | Total Leakage L/min |
|---|---|---|---|---|---|---|---|---|---|
| MR15035 | 150 | 171.1 / 156.7 | 72(7342)/ 66(6730) | 35 | 4.5(45.9) | 5500 | 0.043 | 12.8 | 0.8 |
| MR20060 | 200 | 310 / 286 | 146(14887)/ 134(13664) | 60 | 4.9(50) | 5000 | 0.55 | 49 | 2 |
| MR25060 | 250 | 481.5 / 453.6 | 227(23147)/ 214(21822) | 60 | 4.9(50) | 2000 | 0.81 | 72 | 2 |

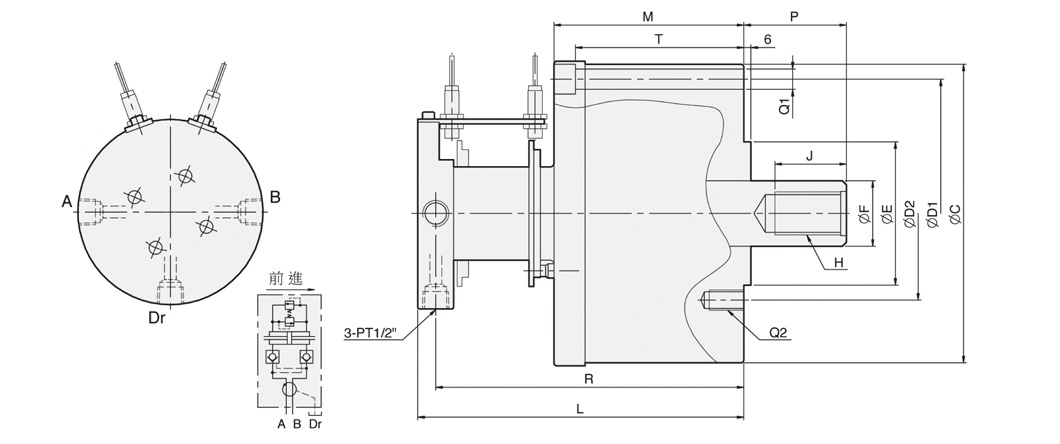

| DIM Model | C | C1 | D1 | D2 | E(h7) | F | G | H | J | L | M | P max. | P min. | Q1 | Q2 | R | T | Z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MR15035 | 202 | 204 | 180 | 130 | 110 | 110 | 45 | M30x3.5 | 45 | 175 | 95 | 61 | 26 | 6-Ø13 | 12-M12 | 163 | 82 | 5 |
| MR20060 | 250 | 225 | 225 | 145 | 120 | 55 | 37 | M36xP4.0 | 60 | 270 | 156 | 85 | 25 | 6-Ø17 | 6-M16 | 255 | 140 | 6 |
| MR25060 | 300 | 305 | 275 | 220 | 160 | 65 | 44 | M42xP3.0 | 60 | 280 | 168 | 85 | 25 | 6-Ø17 | 6-M20 | 265 | 150 | 6 |
