| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH Cooperated Brand |
| Model Number: | Refer to the picture |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HB Boring mill jaw | Material: | 45#Steel/Cast Steel |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision/JIP STAND |
| Usage: | Service: | ODM/OEM Is Available | |
| Highlight: | auto strong chucks, strong chucks |
||

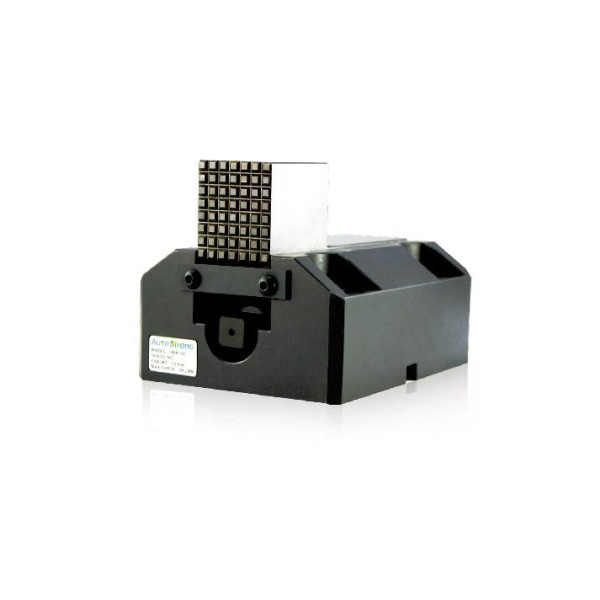

HB Boring mill jaw
Boring mill jaw
Clamping of workpiece for larger size lathe, vertical lathe, die set with jig.
One set of 4-piece with T-bolt.
UNIT : mm

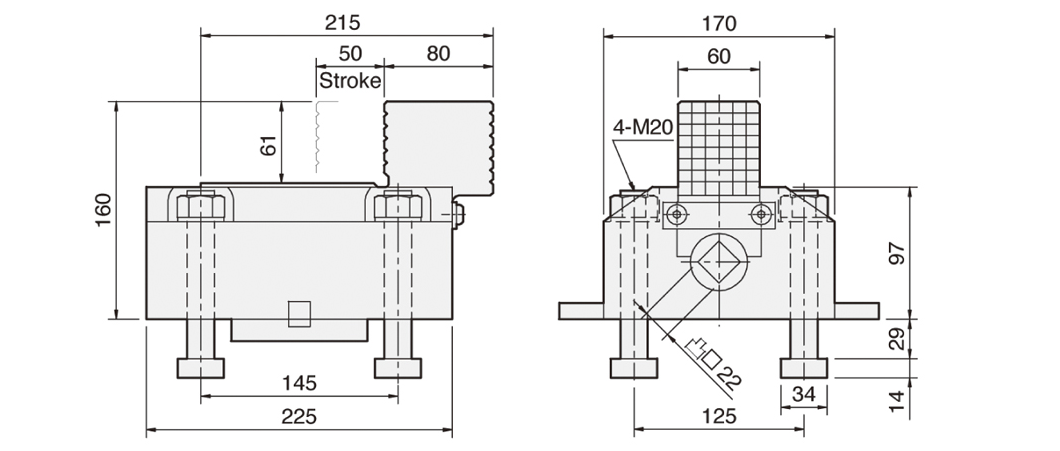

SPEC | Jaw Stroke (mm) | Max.Gripping Force (kn) | Weight (kg) |
|---|---|---|---|
| HB4-160 | 20 | 39.2 | 29 |
UNIT : mm

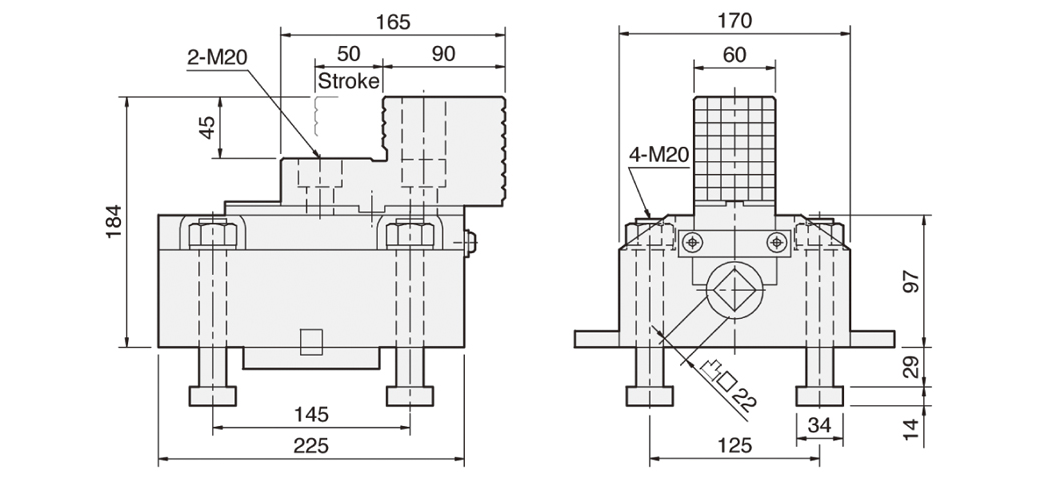

| SPEC Model | Jaw Stroke (mm) | Max.Gripping Force (kn) | Weight (kg) |
|---|---|---|---|
| HB4-189 | 50 | 39.2 | 31 |
UNIT : mm

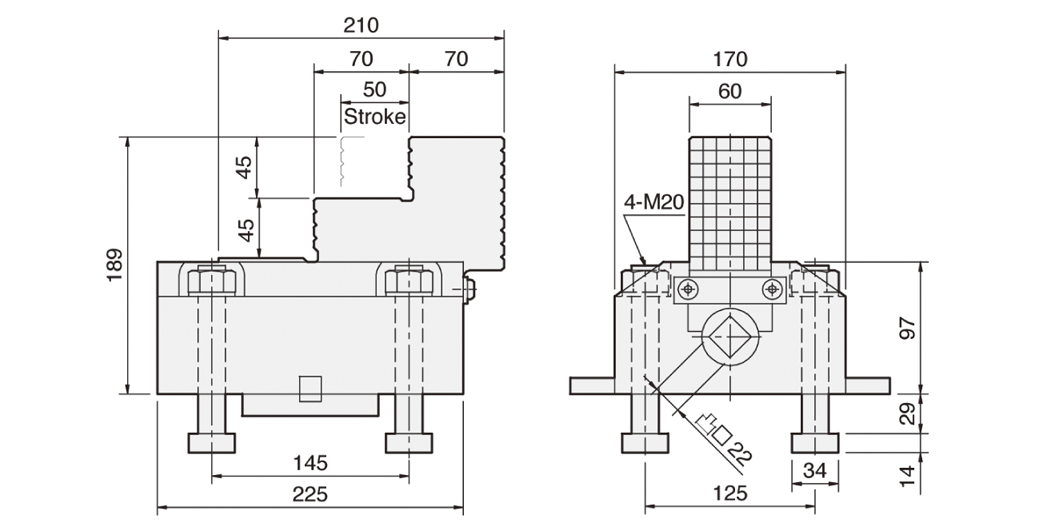

| SPEC Model | Jaw Stroke (mm) | Max.Gripping Force (kn) | Weight (kg) | Matching Soft Jaw |
|---|---|---|---|---|
| HB4-2P | 50 | 39.2 | 31 | HE2486 |
