| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | PJ-15H70/80/90 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HIGHER FULL GRIP PIE JAWS FOR B215 15 INCH POWER CHUCK | Material: | 45#Steel/Aluminum |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision/Higher |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | cnc lathe chuck jaws, steel pie jaws |
||

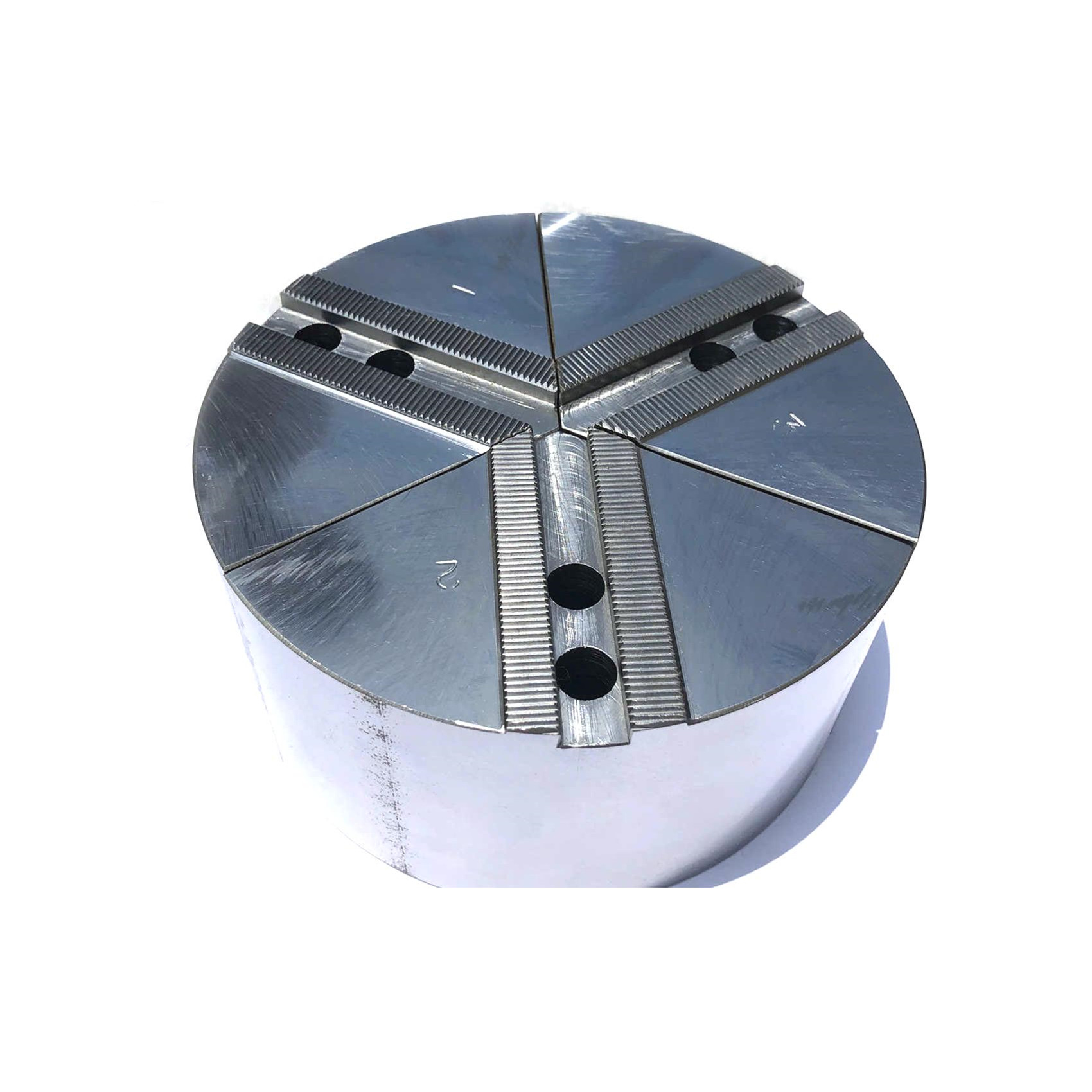

HIGHER FULL GRIP PIE JAWS FOR B215 15 INCH POWER CHUCK
52/60/66.5HIGHER FULL GRIP PIE JAWS FOR B215 15 INCH POWER CHUCK
Brand:OMATEI
Selection Guidance
1. Chuck brand and model name
2. Workpiece size and the gripping height
Advantage
1. For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2. Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3. Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4. Customized and non-standard jaws and be designed and OEM.

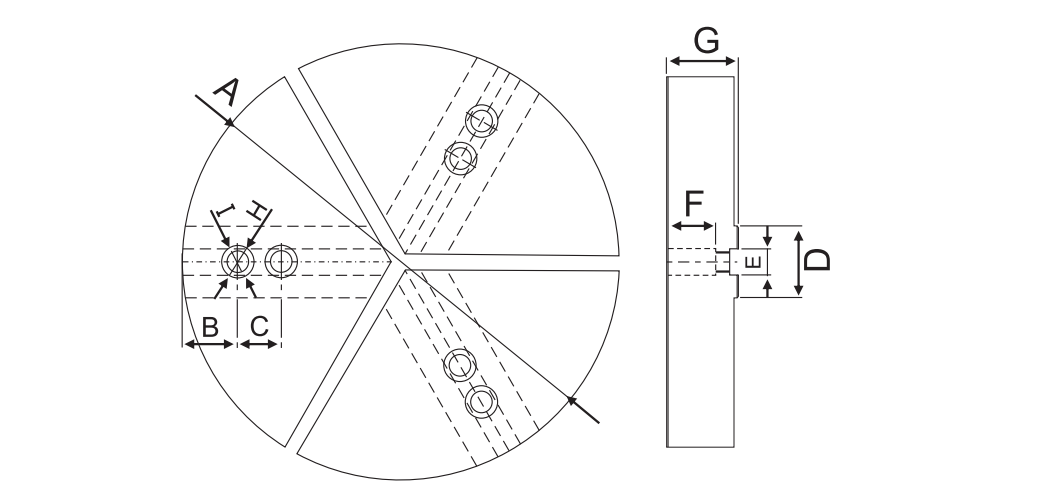

Serration Pitch:1.5mmx60° UNIT : mm
| Model | A | B | C | D | E | F | G | H | I | GW KG/SET |
| PJ-15-22H70/80/90 | 370 | 37 | 43 | 62 | 22 | 46/56/66 | 70/80/90 | 32 | 21 | 52/60/66.5 |
| PJ-15-25.5H70/80/90 | 370 | 37 | 43 | 62 | 25.5 | 46/56/66 | 70/80/90 | 32 | 21 | 52/60/66.5 |
Other option of serration pitch: 3.0*60°
Subject to technical changes
