| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | RT-05,RT-06,RT-08,RT-10,RT-05T,RT-06T, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | RT ROTARY AIR CHUCK FIXTURES | Material: | Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | lathe jaw chuck, power collet chuck |
||

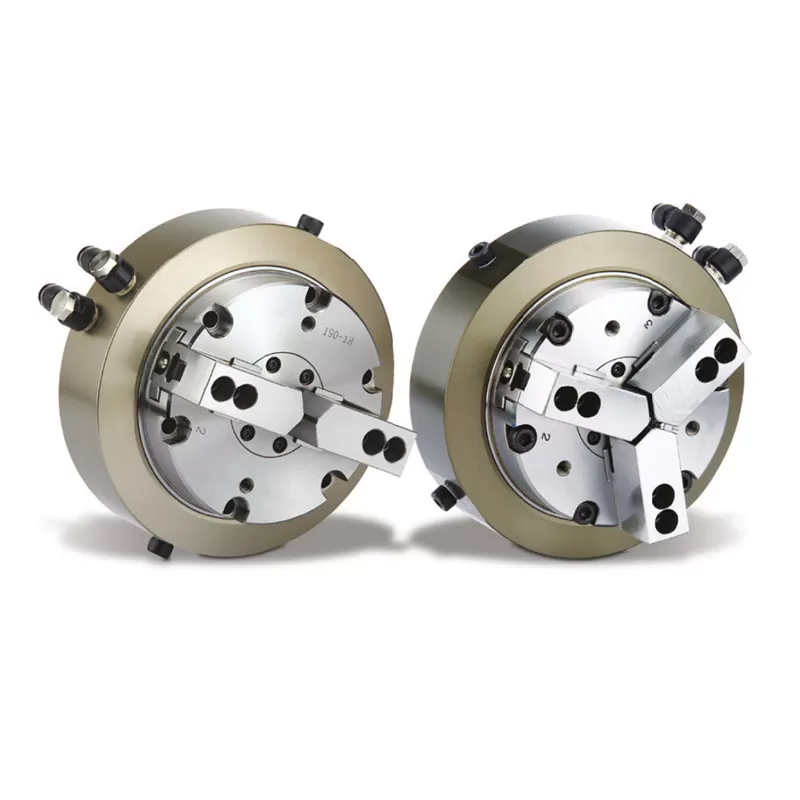

RT ROTARY AIR CHUCK FIXTURES
Brand:NTH
Suitable for light cutting

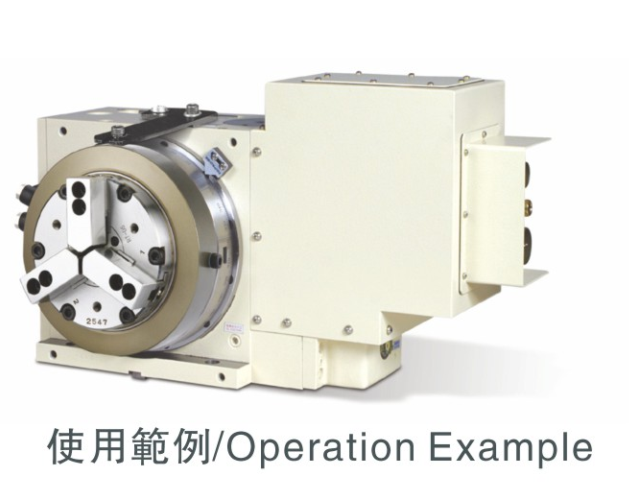

It’s ideal for dividing or cutting work pieces by mounting the chuck on indexing table or rotary table. The distinctive feature is that the chuck rotates with the spindle of indexing table or rotary table.
Rustproof treated cylinder:
The cylinder won't get rusty and seized even in wet or high moisture working environment.
Dust and water proof cover:
Prevent metal chips or coolant from entering inside of chuck cylinder to maintain its accuracy and lead to longer service life.
Integral pneumatic cylinder:
Connect chuck and built-in cylinder to each other directly;thus enables operation stability. Moreover, it is more convenient for installation and operation since the use of draw tube and draw bar are no longer necessary.
| Spec Model | Thru hole dia. mm | Piston Area cm2 | Piston stroke mm | Jaw stroke Dia. mm |
|---|---|---|---|---|
| RT-05 | 16 | 74 | 10 | 4.6 |
| RT-06 | 20 | 120 | 13 | 5.5 |
| RT-08 | 30 | 190 | 16 | 6.8 |
| RT-10 | 43 | 280 | 19 | 8 |
| RT-05T | 16 | 74 | 10 | 4.6 |
| RT-06T | 20 | 120 | 13 | 5.5 |
| Spec Model | Max RPM | Max.Pressure kgf/cm2(Mpa) | Gripping Force At Air Pressure 7kgf/cm2 Kgf(KN) | Gripping Range mm | Weight kg |
|---|---|---|---|---|---|
| RT-05 | 51 | 7(0.7) | 1340(13.1) | Ø4-Ø136 | 9.3 |
| RT-06 | 41 | 7(0.7) | 2330(22.8) | Ø25-Ø166 | 15.5 |
| RT-08 | 33 | 7(0.7) | 3730(36.5) | Ø33-Ø215 | 28.5 |
| RT-10 | 26 | 7(0.7) | 5480(53.7) | Ø43-Ø255 | 42.3 |
| RT-05T | 51 | 7(0.7) | 1340(13.1) | Ø4-Ø136 | 9 |
| RT-06T | 41 | 7(0.7) | 2330(22.8) | Ø25-Ø166 | 15 |

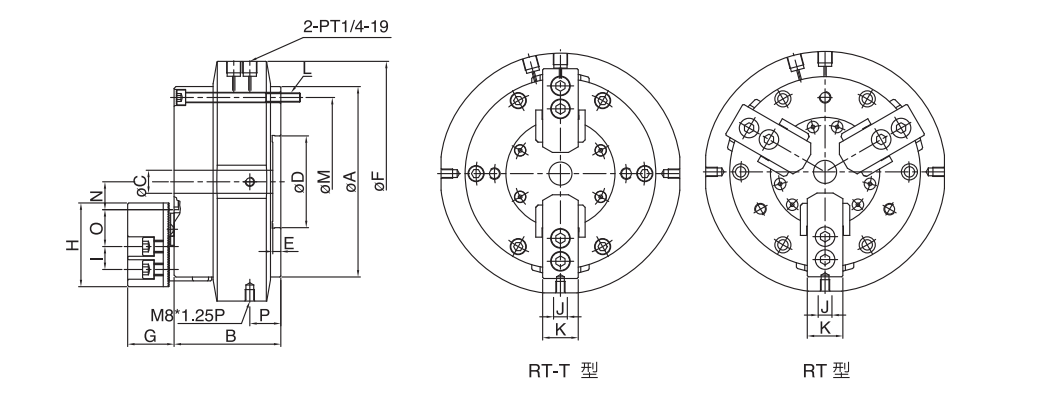

| Spec Model | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| RT-05 | 140 | 85 | 16 | 60 | 6 | 180 | 33 | 62 | 14 |
| RT-06 | 170 | 93 | 20 | 80 | 7 | 210 | 40 | 73 | 20 |
| RT-08 | 215 | 112 | 30 | 110 | 8 | 250 | 42 | 95 | 25 |
| RT-10 | 255 | 120 | 43 | 140 | 8 | 290 | 46 | 110 | 30 |
| RT-05T | 140 | 85 | 16 | 60 | 6 | 180 | 33 | 62 | 14 |
| RT-06T | 170 | 93 | 20 | 80 | 7 | 210 | 40 | 73 | 20 |
| Spec Model | J | K | L | M | P | N max | N min | O mx | O min |
|---|---|---|---|---|---|---|---|---|---|
| RT-05 | 10 | 25 | 6-M8×1.25P | PCDØ118 | 27 | 26.93 | 24.62 | 20.05 | 6.55 |
| RT-06 | 12 | 31 | 6-M8×1.25P | PCDØ147 | 27 | 36.46 | 33.69 | 21.55 | 15.55 |
| RT-08 | 14 | 35 | 6-M10×1.5P | PCDØ185 | 28 | 44.92 | 41.52 | 29.55 | 17.55 |
| RT-10 | 16 | 40 | 6-M10×1.5P | PCDØ220 | 30.5 | 53.63 | 49.59 | 36.55 | 17.05 |
| RT-05T | 10 | 25 | 6-M8×1.25P | PCDØ118 | 27 | 26.93 | 24.62 | 20.05 | 6.55 |
| RT-06T | 12 | 31 | 6-M8×1.25P | PCDØ147 | 27 | 36.46 | 33.69 | 21.55 | 15.55 |
Subject to technology changes without prior information
Non-standard requirements can be made
