| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | DPF-06,DPF-08 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days if available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets/M |
| Product Name: | Forged Steel 4 Jaw Pull Back Power Chuck DPF Series With 12 Months Guarantee | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | 12 Months | Service: | OEM/ODM Is Acceptable |
| Highlight: | 4 Jaw Pull Back Power Chuck, DPF Series Power Chuck, 12 Months Guarantee Power Chuck |
||

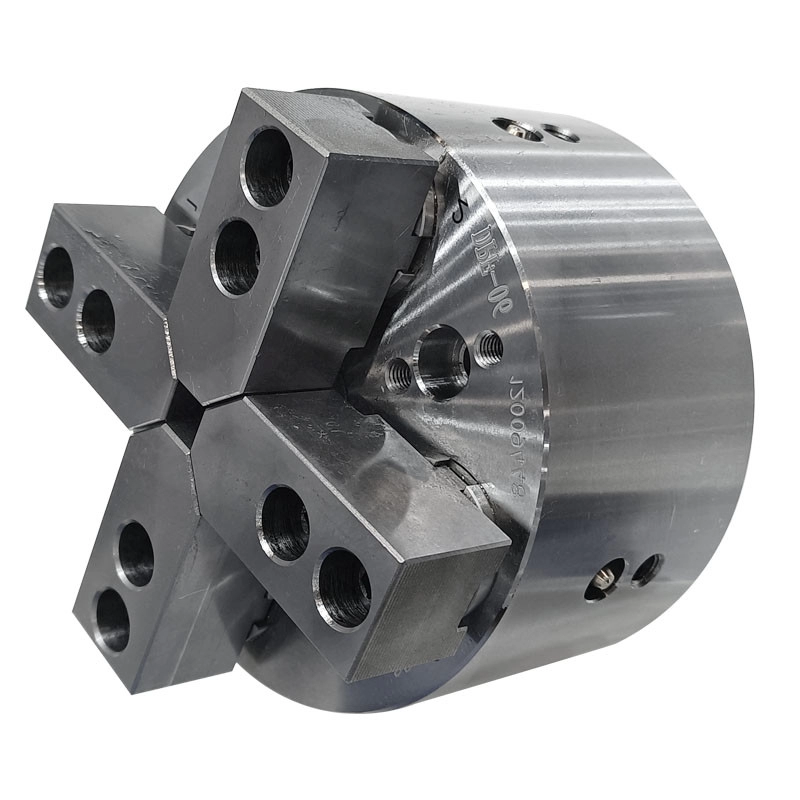

Forged Steel 4 Jaw Pull Back Power Chuck DPF Series With 12 Months Guarantee
Production Catalogue Download:DPF SERIES.pdf

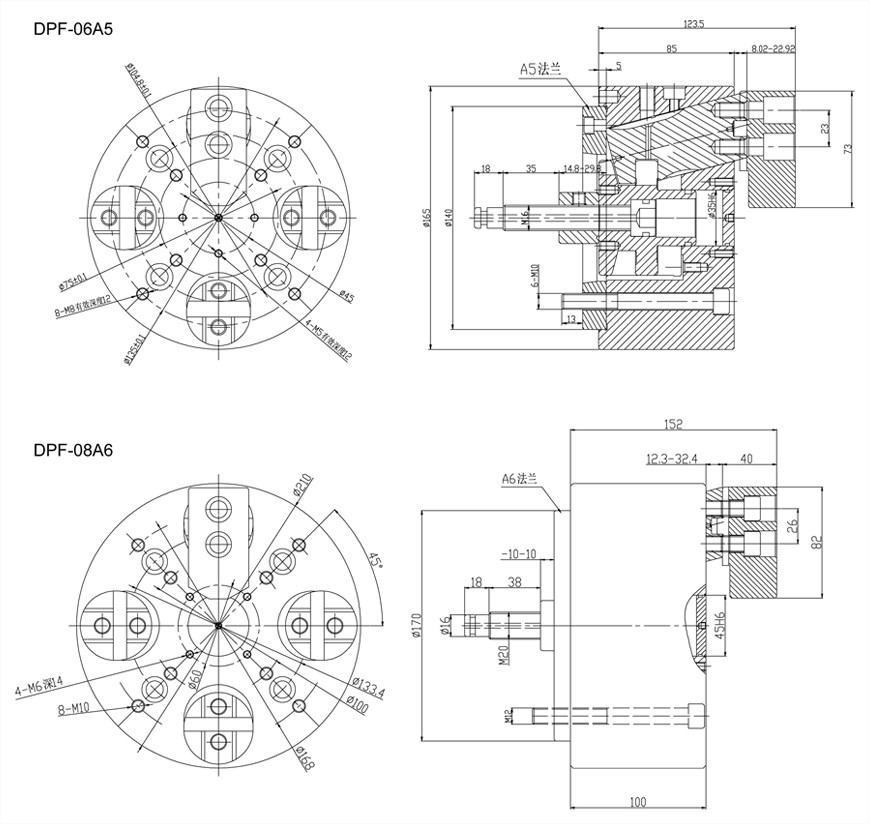

(Size unit: mm)
| SPEC/MODEL | Plunger stroke (mm)
| Jaw Stroke (Dia.mm) | Gripping range (mm) | Max.Pull force KN(kgf) | Max. Gripping force KN(kgf) | Max. Speed (r/min) | Moment of inertial (kg.m²) | Weight (kg) | Matching cylinder | Max. pressure MPa (kgf/cm²) |
| DPF-06A5 | 15 | 7.8 | 22-165 | 9(910) | 25(2250) | 3500 | 0.05 | 15 | SLA-100 | 2.5(25) |
| DPF-08A6 | 20 | 10.3 | 28-210 | 16(1630) | 45(4590) | 3000 | 0.15 | 26 | SLA-125 | 1.2(22) |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
