| Product Name: | 3F 3jaw Closed Center Finger Power Chuck For Gripping | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | 3F Power Chuck, closed center power chuck, 3JAW Power Chuck |
||

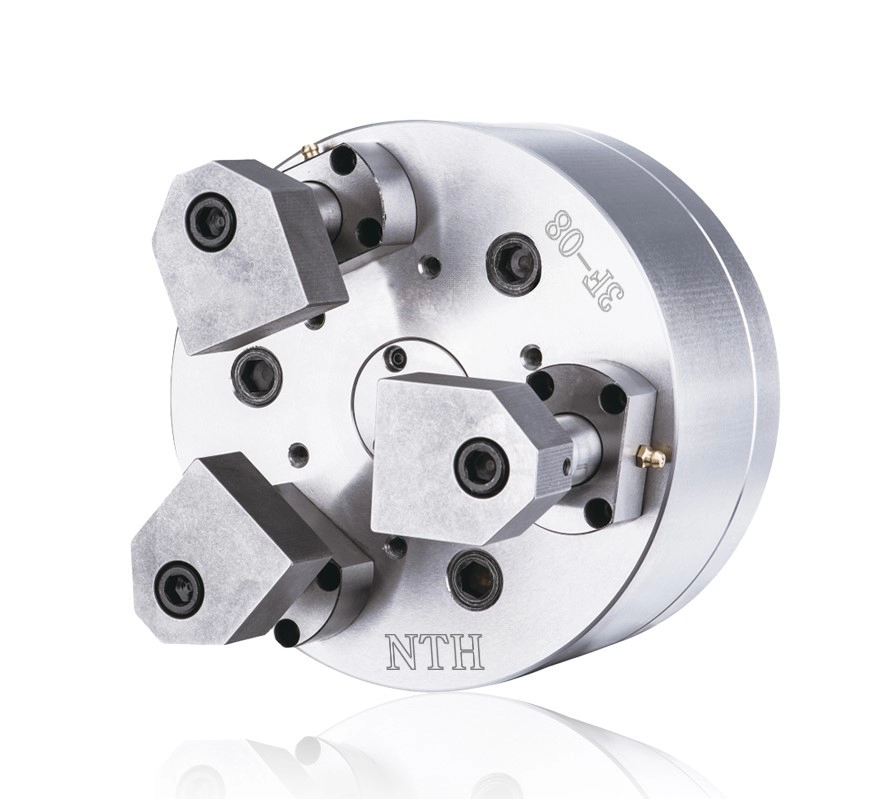

3F 3jaw Closed Center Finger Power Chuck For Gripping
To prevent deformation of workpiece as gripping the end surface, suitable for thin workpiece process.
The compensating mechanism of gripping that can clamp irregular surface workpieces.
It can go with the check device to inspect the clamping status.
Production Catalogue Download:3F SERIES.pdf
(Size unit: mm)
| Spec / Model | Plunger stroke mm | Jaw stroke Dia. mm | Max chucking Dia. mm | Min chucking Dia. mm | Max.D.B.Pull KN(kgf) |
| 3F-05 | 12 | 8 | 53 | 25 | 7.5(765) |
| 3F-06 | 12 | 8 | 79 | 55 | 9.0(918) |
| 3F-08 | 12 | 8 | 106 | 75 | 18.0(1835) |
| 3F-10 | 12 | 8 | 150 | 119 | 18.0(1835) |
| 3F-12 | 12 | 8 | 200 | 169 | 18.0(1835) |
Spec / Model | Max clamping force KN(kgf) | Max RPM | Inertia kg*m2 | Weight kg | Matched cylinders | Max Pressure Mpa(kgf) |
| 3F-05 | 6.0(612) | 4000 | 0.02 | 11 | S-100R/SNK-100 | 1.0(10) |
| 3F-06 | 7.5(765) | 4000 | 0.04 | 12 | S-100R/SNK-100 | 1.2(12) |
| 3F-08 | 16.5(1680) | 3500 | 0.13 | 23 | S-100R/SNK-100 | 2.5(25) |
| 3F-10 | 16.5(1680) | 3500 | 0.3 | 33 | S-100R/SNK-100 | 2.5(25) |
| 3F-12 | 16.5(1680) | 3000 | 0.56 | 44 | S-100R/SNK-100 | 2.5(25) |

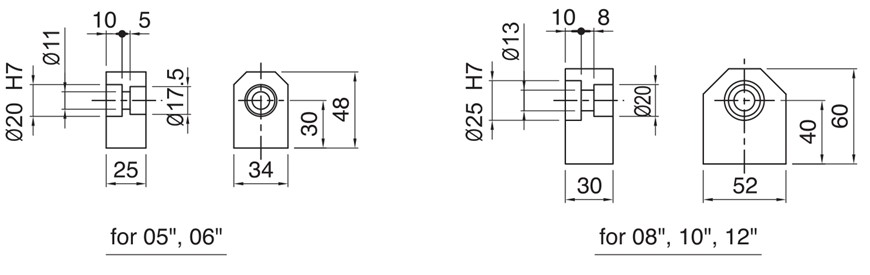

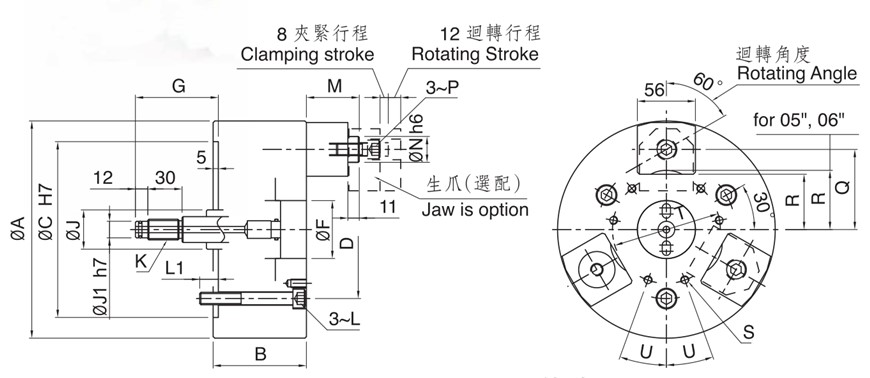

| Spec / Model | A | B | C | D | F | G Max | G Min | J | J1 | K |
| 3F-05 | 135 | 86 | 110 | 82.6 | 40 | 75 | 55 | 25 | 10 | M12×1.75 |
| 3F-06 | 165 | 86 | 140 | 104.8 | 45 | 75 | 55 | 28 | 14 | M16×2 |
| 3F-08 | 210 | 90 | 170 | 133.4 | 56 | 80 | 60 | 38 | 16 | M20×2.5 |
| 3F-10 | 254 | 95 | 220 | 171.4 | 56 | 75 | 55 | 38 | 16 | M20×2.5 |
| 3F-12 | 304 | 95 | 220 | 171.4 | 56 | 75 | 55 | 38 | 16 | M20×2.5 |
| Spec / Model | L | L1 | M Max | M Min | N | P | Q | R | S | T | U |
| 3F-05 | M10 | 15 | 56 | 36 | 20 | M10 | 42.5 | 27 | 3-M6 | 50 | - |
| 3F-06 | M10 | 15 | 56 | 36 | 20 | M10 | 57.5 | 40 | 3-M8 | 64 | 20° |
| 3F-08 | M12 | 18 | 71 | 51 | 25 | M12 | 77.5 | 53.5 | 6-M8 | 104 | 20° |
| 3F-10 | M16 | 24 | 71 | 51 | 25 | M12 | 99.5 | 75.5 | 6-M8 | 140 | 20° |
| 3F-12 | M16 | 24 | 71 | 51 | 25 | M12 | 124.5 | 100.5 | 6-M8 | 190 | 20° |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
