| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | SIF SERIES |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | -- |
| Product Name: | High Precision SIF 4 Jaw Combination Manual Chuck Stable | Material: | Cast Iron |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | Stable 4-Jaw Combination Manual Chuck, 4-Jaw Combination Manual Chuck, High Precision Combination Manual Chuck |
||

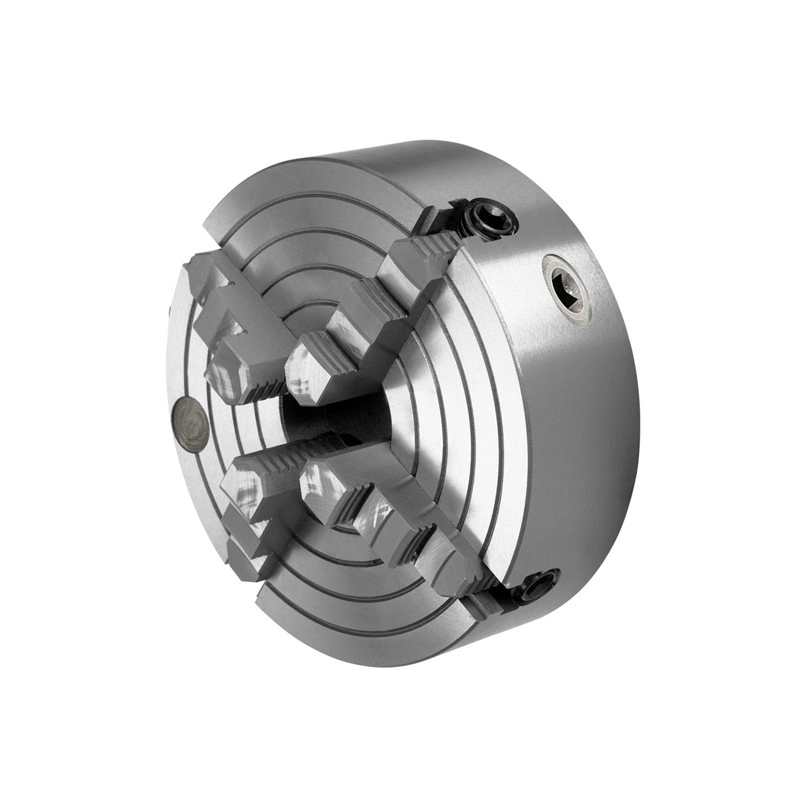

High Precision SIF 4 Jaw Combination Manual Chuck Stable
Brand:NTH
It's suitable for the lathe machine, rotary table and CNC machine center and so on.
It can work for regular or irregular workpiece without changing the chuck.
lt has the gripping function of both scroll chuck and independent movement chuck.
Back mounting hole design, and front mounting is achievable.

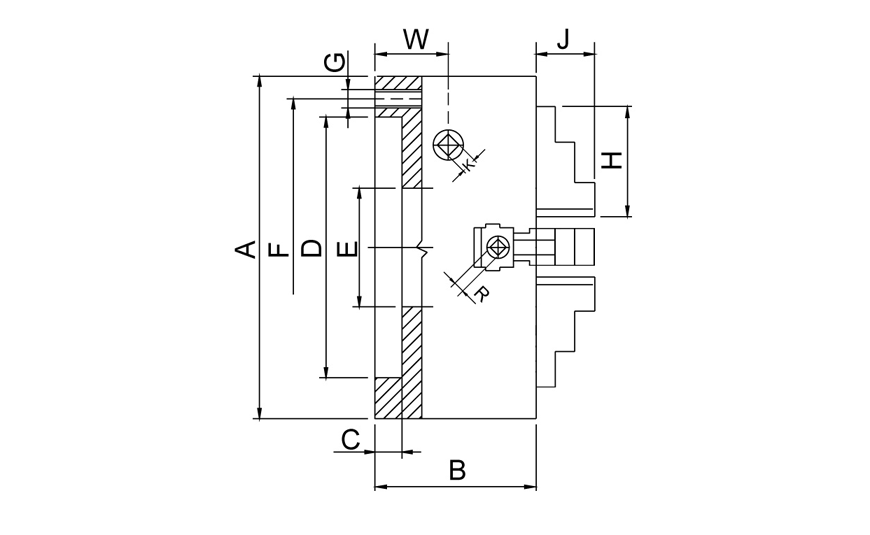

(unit: mm)
MODEL/ SPEC | A | B | C | D | E | F | G |
| SIF-160 | 160 | 82 | 4 | 125 | 42 | 140 | 3-M10 |
| SIF-200 | 200 | 86 | 4 | 160 | 55 | 176 | 3-M10 |
| SIF-250 | 250 | 101 | 5 | 200 | 76 | 224 | 3-M12 |
| SIF-315 | 315 | 118 | 5 | 260 | 103 | 286 | 3-M16 |
| SIF-400 | 400 | 124 | 6 | 330 | 136 | 362 | 3-M16 |
| SIF-500 | 500 | 145 | 6 | 420 | 190 | 458 | 3-M16 |
| SIF-630 | 630 | 160 | 7 | 545 | 252 | 586 | 3-M16 |
| SIF-800 | 800 | 200 | 10 | 710 | 267 | 760 | 3-M20 |
| SIF-1000 | 1000 | 236 | 10 | 910 | 460 | 950 | 3-M24 |
| SIF-1250 | 1250 | 241 | 10 | 1000 | 560 | 1100 | 3-M30 |
MODEL/ SPEC | H | J | K | R | W | RPM max |
| SIF-160 | 69 | 28.5 | 11 | 6 | 22.3 | 3200 |
| SIF-200 | 85 | 31 | 11 | 8 | 26 | 3000 |
| SIF-250 | 91 | 33 | 14 | 8 | 29.3 | 2500 |
| SIF-315 | 125 | 42 | 14 | 10 | 32 | 2000 |
| SIF-400 | 145 | 58 | 17 | 10 | 36 | 1500 |
| SIF-500 | 180 | 61 | 19 | 12 | 43.5 | 1000 |
| SIF-630 | 225 | 72 | 19 | 12 | 48.5 | 750 |
| SIF-800 | 245 | 67 | 19 | 17 | 57.5 | 600 |
| SIF-1000 | 245 | 88 | 24 | 19 | 67 | 380 |
| SIF-1250 | 245 | 88 | 24 | 19 | 72 | 200 |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
