| Product Name: | MC HIGH PRECISION SUPER HIGH-PERSSURE RAPID CLAMING PNEUMATIC VICE , AIR VISE OEM ODM MANUFACTURER | Material: | Nodular Cast Iron |
|---|---|---|---|
| Function: | Gripping | Feature: | High Precision/Stable/High Quality |

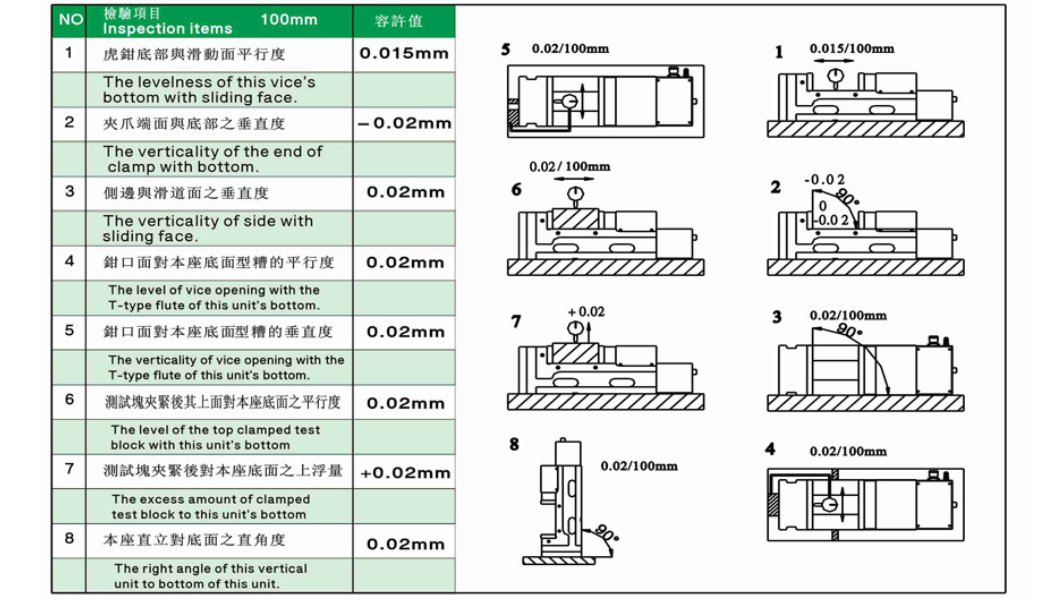

| Usage: | Refer To The Specification | Service: | Within 0.02mm/100mm |
| Highlight: | pneumatic air vise, pneumatic milling vise |
||

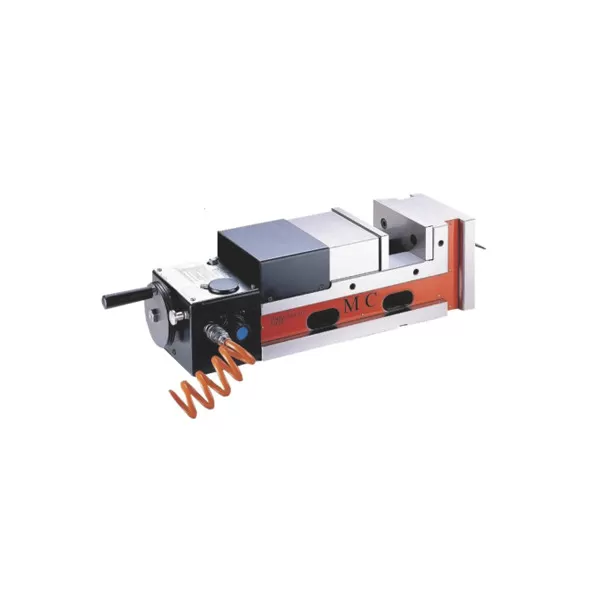

MC HIGH PRECISION SUPER HIGH-PERSSURE RAPID CLAMING PNEUMATIC VICE , AIR VISE OEM ODM MANUFACTURER
This Product Is The Exclusive Patent Authorized By U,S,A,Taiwan And CHINA
The principle of this vice is adopting the reciprocating pneu.motor (PAT.stucture) which P&D by inhouse and that employs an air actuated cylinder.Circuiting progressively to make automation,no need the R.F.L unit to filter the moisture,the sole character is superior than any brand in domestic & international market.

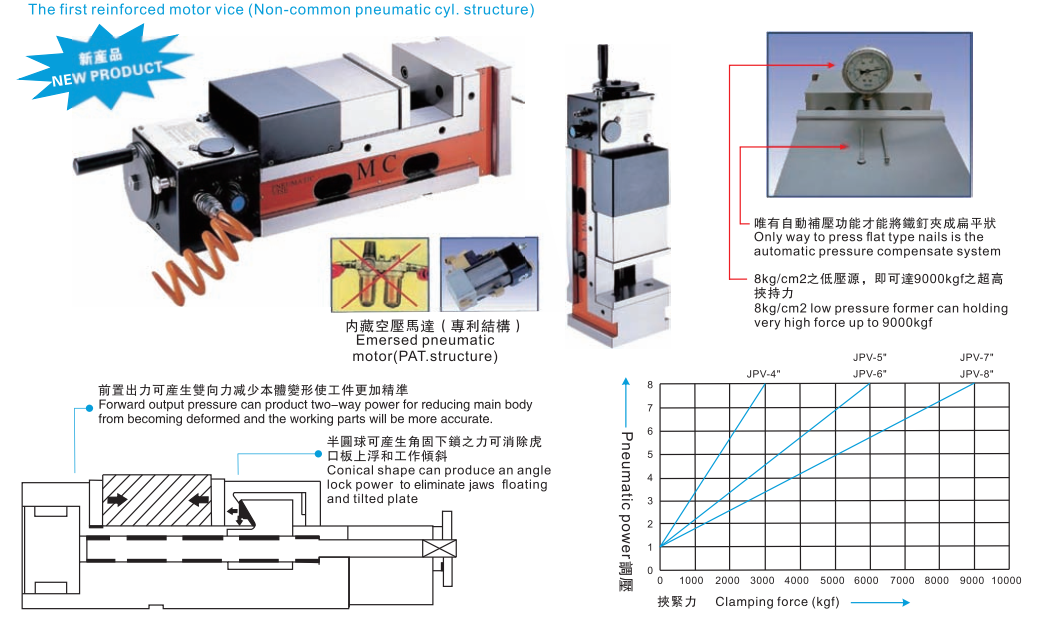

Super hi-gripping force
Even the air source at low pressure 8kg/cm2 which can be achieved super hi-gripping force 9000kgf, and the 0~9000kgf gripping force can be adjusted freely by pressure regulator.
Seeking the highest air source automatically
When processed copper, aluminium etc.non-iron workpiece or raw cast iron etc.,making heavy cutting which can be made adaptable gripping force to ensure work piece clamping and with auto compensating & retaining pressure etc.,functions.
The biggest safety clamping range:
The shifting speed is only 1.5 sec.with safety range 8mm,also equipped with safety line on hand wheel and can be visible the clamped work piece safety range is exceeded or not.
Triple usage of vertical. side. horizontal
Six faces of vice body be super grinding & pre-setting holding slot,and can be processed vertically without jig fixture.
Super rugged material
The vice body is adopted hi-tensile graphite casting iron (FCD-60),one-piece design and harden heat-treatment (HRC45) at two slide which ensured hi-precision ,hi-durability & hi-tensile.way
Submersed angle fixed pressed down structure

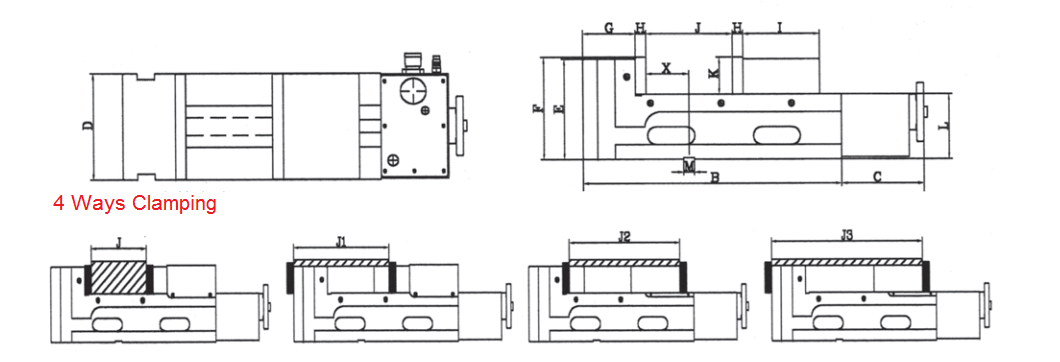

| Model | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| JPV-4"-100 | 435 | 320 | 125 | 100 | 145 | 148 | 85 | 15 | 100 | 0-100 |
| JPV-5"-150 | 505 | 380 | 125 | 130 | 157 | 160 | 85 | 15 | 110 | 0-150 |
| JPV-6"-160 | 525 | 400 | 125 | 160 | 160 | 163 | 85 | 15 | 120 | 0-160 |
| JPV-6"-250 | 615 | 490 | 125 | 160 | 160 | 163 | 85 | 15 | 120 | 0-250 |
| JPV-7"-200 | 585 | 460 | 125 | 180 | 170 | 173 | 90 | 18 | 130 | 0-200 |
| JPV-8"-200 | 595 | 470 | 125 | 200 | 170 | 173 | 90 | 18 | 140 | 0-200 |
| JPV-8"-300 | 695 | 570 | 125 | 200 | 170 | 173 | 90 | 18 | 140 | 0-300 |
| Model | J1 | J2 | J3 | K | L | M | X | Gripping Kgf | N.W. Kg | G.W. Kg |
|---|---|---|---|---|---|---|---|---|---|---|
| JPV-4"-100 | 95-220 | 100-200 | 200-300 | 48 | 100 | 16 | 45 | 3200 | 27 | 29 |
| JPV-5"-150 | 95-250 | 110-275 | 200-380 | 55 | 105 | 18 | 45 | 6000 | 38 | 40 |
| JPV-6"-160 | 95-260 | 120-295 | 210-400 | 58 | 105 | 18 | 45 | 6000 | 48 | 50 |
| JPV-6"-250 | 95-350 | 120-395 | 210-490 | 58 | 105 | 18 | 45 | 6000 | 52 | 55 |
| JPV-7"-200 | 100-300 | 130-350 | 220-460 | 63 | 110 | 18 | 72 | 9000 | 65 | 72 |
| JPV-8"-200 | 100-310 | 140-360 | 230-470 | 63 | 110 | 18 | 72 | 9000 | 70 | 80 |
| JPV-8"-300 | 100-410 | 140-460 | 230-570 | 63 | 100 | 18 | 72 | 9000 | 79 | 90 |
