| Product Name: | Clamping Nut accessories for milling collet chuck |
Material: | Cast Steel/Alloy Steel/Tool Steel |
| Function: | |
Feature: | High Precision/Long Lifetime/High Quality |
| Usage: | Accessorires For Chuck Mouting |
Service: | ODM/OEM Is Available |
| Highlight: |
milling machine collet, machine tool collets |

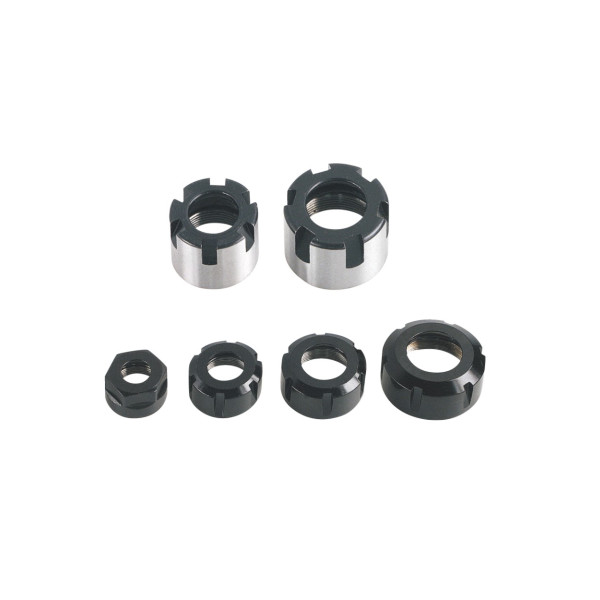

Clamping Nut accessories for milling collet chuck
Clamping Nut accessories for milling collet chuck

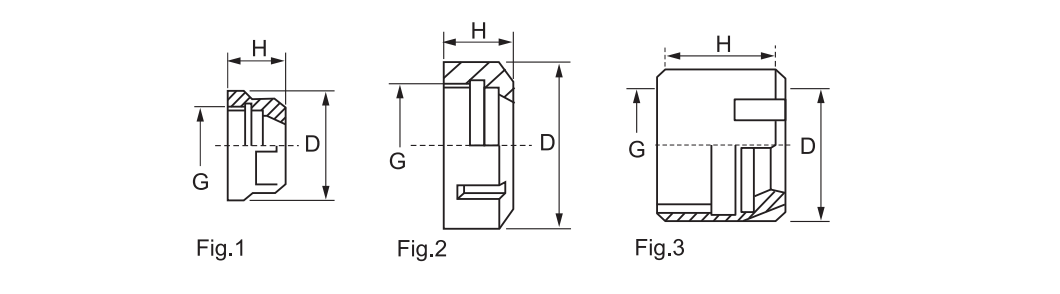

| Model No. | D | H | G | Fig. |
|---|
| ER11 | 19 | 13 | M14×P0.75 | 1 |
| ER16 | 28 | 17.5 | M22×P1.5 | 1 |
| ER20 | 34 | 19 | M25×P1.5 | 1 |
| ER25 | 42 | 20 | M32×P1.5 | 2 |
| ER32 | 50 | 22.5 | M40×P1.5 | 2 |
| ER40 | 63 | 29 | M50×P1.5 | 2 |
| ER11M | 16 | 12 | M13×P0.75 | 3 |
| ER16M | 22 | 18 | M19×P1.0 | 3 |
| ER20M | 28 | 19 | M24×P1.0 | 3 |
