| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | H01MA,H037M,H3KT,H05M etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HARD JAWS FOR HOWA CHUCK | Material: | 45#Steel |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision/JIP STAND |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | metal lathe chuck jaws, kitagawa chuck parts |
||

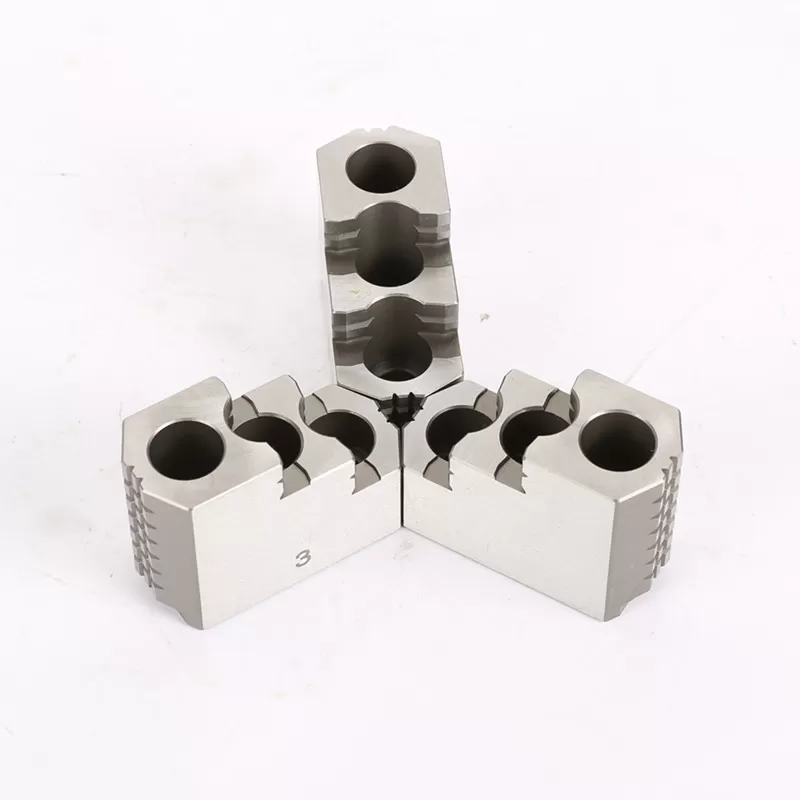

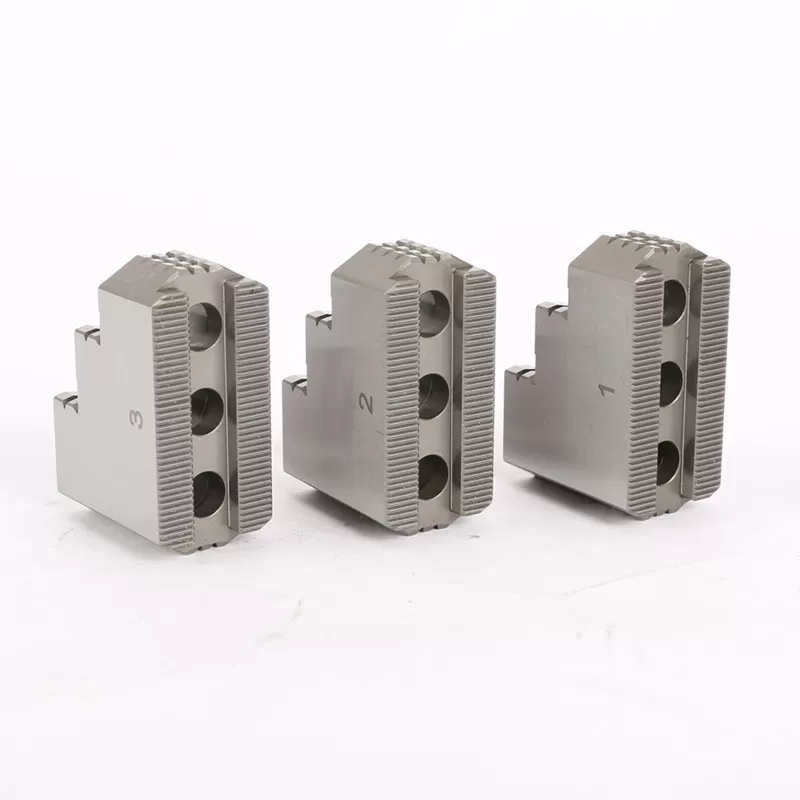

HARD JAWS FOR HOWA CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

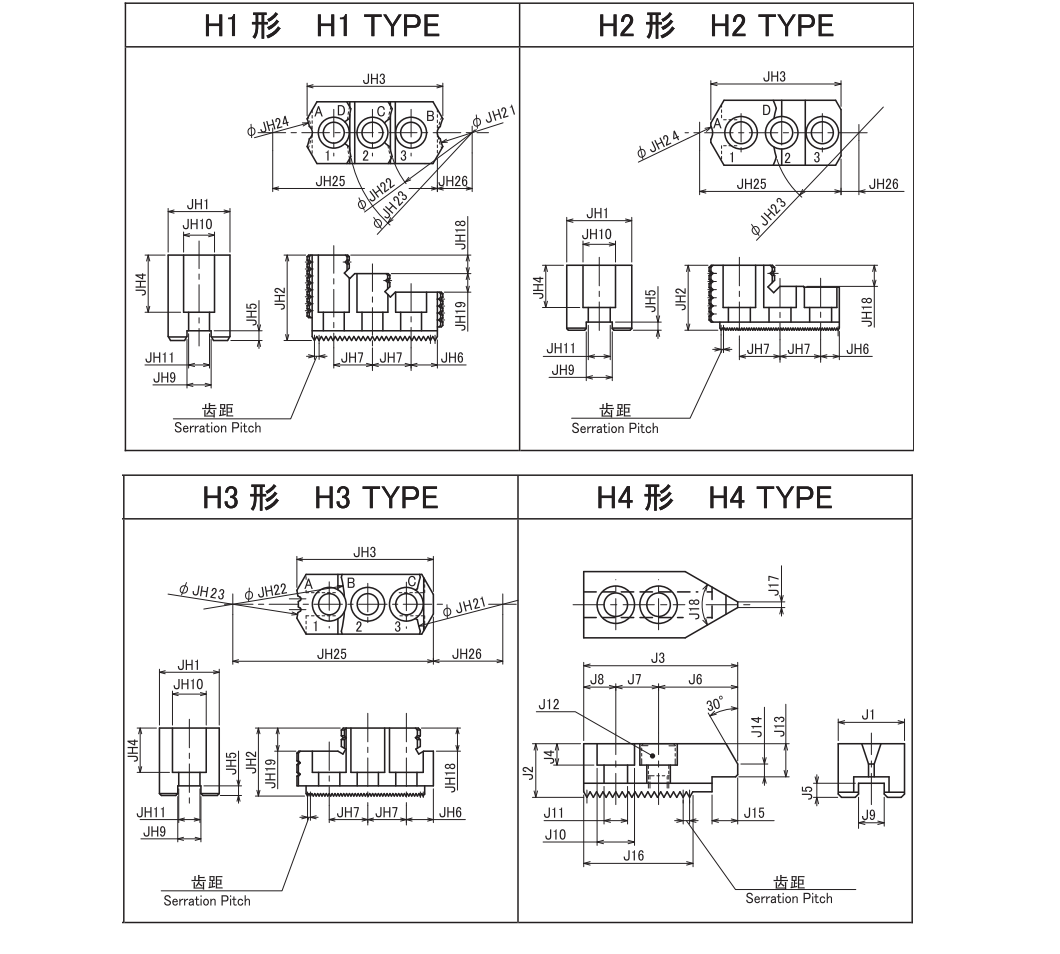

| Chuck NO | Size | PITCH | JH 1 | JH 2 | JH 3 | JH 4 | JH 5 | JH 6 | JH 7 | JH 9 | JH 10 | JH 11 | JH 18 | JH 19 | JH 21 | JH 22 | JH 23 | JH 24 | JH 25 | JH 26 | N.T KG 1pcs | Jaw type |
| H01MA | 6 | 3 | 35 | 46 | 85.2 | 31 | 6 | 13.5 | 20 | 12 | 17.5 | 11 | 10 | 10 | 44 | 104 | 128 | 56 | 106 | 25 | 0.6 | H1 |
| H01MA | 8 | 3 | 40 | 55 | 87.8 | 37 | 6 | 17 | 25 | 14 | 20 | 13.5 | 12 | 12 | 42 | 108 | 160 | 48 | 107 | 22.5 | 0.7 | H1 |
| H01MA | 10 | 3 | 40 | 56 | 98.7 | 39 | 6 | 15 | 15 | 16 | 20 | 13.5 | 13 | 13 | 86 | 145 | 208 | 53 | 120 | 45 | 1 | H1 |
| H01MA | 12 | 3 | 50 | 62 | 104 | 45 | 6 | 16 | 16 | 18 | 23 | 16 | 15 | 15 | 140 | 200 | 260 | 70 | 135 | 71.5 | 1.5 | H1 |
| H01MA | 15 | 3 | 65 | 75 | 153 | 55 | 8 | 20 | 20 | 26 | 32 | 22 | 30 | 300 | 150 | 225 | 68 | 3.3 | H2 | |||
| H037M H027M | 4-5 | 1.5 | 28 | 30 | 54.3 | 20 | 5 | 12 | 14 | 11 | 14 | 9 | 8 | 75 | 20 | 63 | 12 | 0.3 | H2 | |||
| H037M H027M | 6 | 1.5 | 35 | 35 | 64.3 | 22 | 5 | 10 | 20 | 12 | 17.5 | 11 | 11 | 86 | 12 | 69.5 | 9.5 | 0.4 | H2 | |||
| H037M H027M | 8 | 1.5 | 40 | 40 | 80.1 | 26 | 5 | 11.5 | 25 | 16 | 20 | 13.5 | 13 | 106 | 16 | 87 | 11 | 0.8 | H2 | |||
| H037M H027M | 10 | 1.5 | 45 | 45 | 95.3 | 30 | 5 | 15 | 30 | 18 | 23 | 16 | 15 | 138 | 24 | 106 | 16 | 1.2 | H2 | |||
| H037M H027M | 12 | 1.5 | 50 | 50 | 110 | 37 | 5 | 15.5 | 35 | 21 | 26 | 18 | 20 | 166 | 32 | 125 | 17.5 | 1.8 | H2 | |||
| H3KT | 15 | 3 | 60 | 60 | 133 | 41 | 8 | 18 | 42 | 26 | 32 | 22 | 20 | 12 | 90 | 116 | 205 | 65 | 164 | 32 | 3 | H2 |
| H3KT | 6 | 1.5 | 31 | 35 | 70.8 | 23 | 5 | 14 | 20 | 12 | 17.5 | 11 | 12 | 12 | 71 | 136 | 68 | 104 | 36 | 0.3 | H3 | |
| H3KT | 8 | 1.5 | 35 | 51 | 87 | 36 | 5 | 19 | 25 | 14 | 20 | 13.5 | 12 | 13 | 100 | 186 | 169 | 87 | 127 | 38 | 0.6 | H1 |
| H3KT | 10 | 1.5 | 40 | 54 | 101 | 39 | 5 | 10.5 | 30 | 16 | 20 | 13.5 | 13 | 220 | 82 | 137 | 54.5 | 1 | H1 | |||
| H3KT | 12 | 1.5 | 50 | 52 | 107 | 35 | 5 | 20.3 | 30 | 21 | 26 | 17.5 | 17 | 210 | 84 | 145 | 47.8 | 1.3 | H2 |
| Chuck NO | Size | PITCH | J1 | J2 | J3 | J4 | J5 | J6 | J7 | J8 | J9 | J10 | J11 | J12 | J13 | J14 | J15 | J16 | J17 | J18 | N.T. KG | Jaw type |
| H05M | 6 | 1.5 | 31 | 23.5 | 23.5 | 10 | 5 | 38 | 20 | 15 | 12 | 17.5 | 11 | M10 | 15.5 | 6 | 13 | 46.5 | 1.5 | 60° | 0.4 | H4 |
| H05M | 8 | 1.5 | 35 | 26 | 89.5 | 12 | 5 | 44.5 | 25 | 20 | 16 | 20 | 13.5 | M12 | 18 | 7 | 14.5 | 57 | 1.5 | 60° | 0.5 | H4 |
| H05M | 10 | 1.5 | 40 | 29 | 104 | 14 | 5 | 48.5 | 30 | 25 | 18 | 23 | 15.5 | M14 | 21 | 7 | 16 | 67.5 | 1.5 | 60° | 0.7 | H4 |
| H05M | 12 | 1.5 | 45 | 32 | 122 | 16 | 5 | 52 | 40 | 30 | 21 | 26 | 17.5 | M16 | 22 | 7 | 16.5 | 85.5 | 1.5 | 60° | 0.9 | H4 |
CLAMPING RANGE
| Bolt NO | SIZE | 1-2 | 1-2 | 1-2 | 1-2 | 2-3 | 2-3 | 2-3 | 2-3 |
| Chuck NO | Size | A | B | C | D | A | B | C | D |
| H01MA | 6 | 49~66 | 25~41 | 85~101 | 109~125 | 19~23 | 60~75 | 120~136 | 144~160 |
| H01MA | 8 | 75~109 | 18~50 | 83~117 | 135~169 | 23~57 | 69~103 | 136~169 | 188~222 |
| H01MA | 10 | 82~136 | 27~81 | 85~140 | 148~203 | 24~76 | 86~139 | 145~199 | 208~262 |
| H01MA | 12 | 83~166 | 34~119 | 94~179 | 154~239 | 24~107 | 94~178 | 154~238 | 214~298 |
| H01MA | 15 | 116~200 | 198~284 | 32~100 | 300~384 | ||||
| H037M H027M | 4 | 23~40 | 61~67 | 11~15 | 75~93 | ||||
| H037M H027M | 5 | 28~63 | 63~89 | 10~36 | 80~116 | ||||
| H037M H027M | 6 | 54~82 | 87~114 | 13~40 | 128~155 | ||||
| H037M H027M | 8 | 54~103 | 102~151 | 10~55 | 152~201 | ||||
| H037M H027M | 10 | 84~132 | 140~187 | 26~72 | 199~247 | ||||
| H037M H027M | 12 | 94~160 | 173~239 | 26~92 | 241~307 | ||||
| H037M H027M | 15 | 119~204 | 200~287 | 36~121 | 282~367 | ||||
| H037M H027M | 6 | 48~78 | 96~126 | 32~60 | 12~36 | 60~84 | 71~101 | ||
| H3KT | 8 | 75~109 | 9~83 | 74~109 | 107~142 | 24~58 | 60~94 | 125~159 | 158`192 |
| H3KT | 10 | 74~119 | 34~79 | 121~165 | 155~199 | 14~59 | 94~139 | 180~224 | 214~259 |
| H3KT | 12 | 101~166 | 166~233 | 42~108 | 226~292 |
Subject to technical changes
