| Product Name: | SC-61 INTERCHANGEABLE MEDIUM DUTY LIVE CENTER | Material: | Alloy Steel |
|---|---|---|---|
| Function: | High Speed And High Precision Lathe Turning | Feature: | High Quality/High Precision |
| Usage: | Refer To The Specification | Service: | Less Than 0.005mm |
| Highlight: | lathe tailstock live center, wood lathe tailstock live center |
||

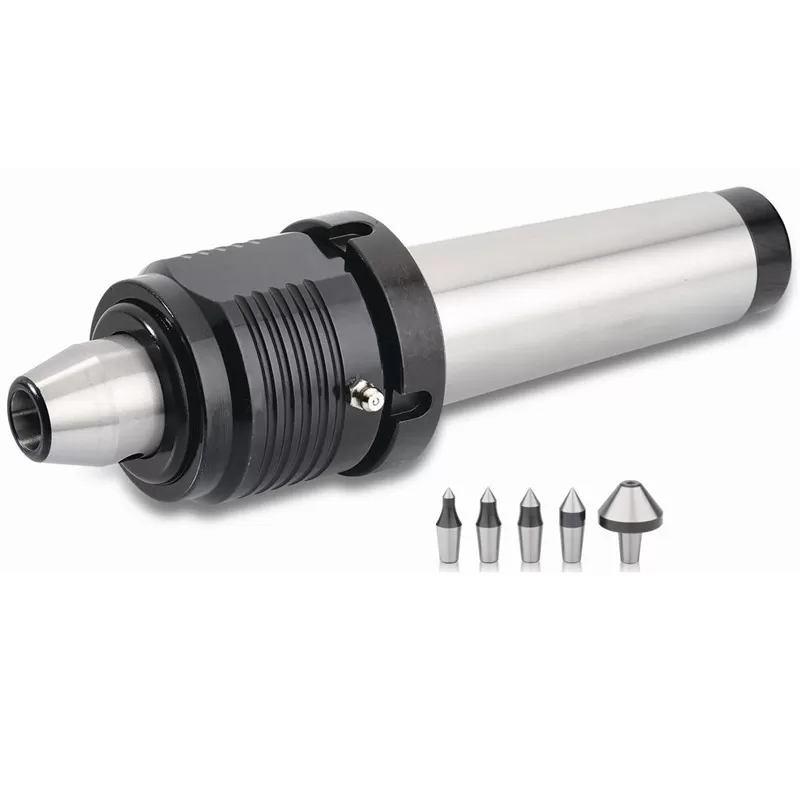

SC-61 INTERCHANGEABLE MEDIUM DUTY LIVE CENTER
Type: Interchangeble live center
Duty: Medium
Application CNC lathe and high speed lathe or other lathe machine.
Working Usage : Applicable for the length less than 400mm ordinary turning process.
Structure The radial load and axial load designed separately. Combination of double row ball bearing and thrust bearing and needle bearing.
Accessories 1. For SC-61-M-3/4/5, 61 type Tips and 61 type pin punch
2. For SC-61-M-3A/4A/5A, Y spanner and 61 type Tips and 61 type pin punch.
TIR Less than 0.005mm
There is S model of light duty type, same spec, which can improve the issue of deformation of processing slender workpiece

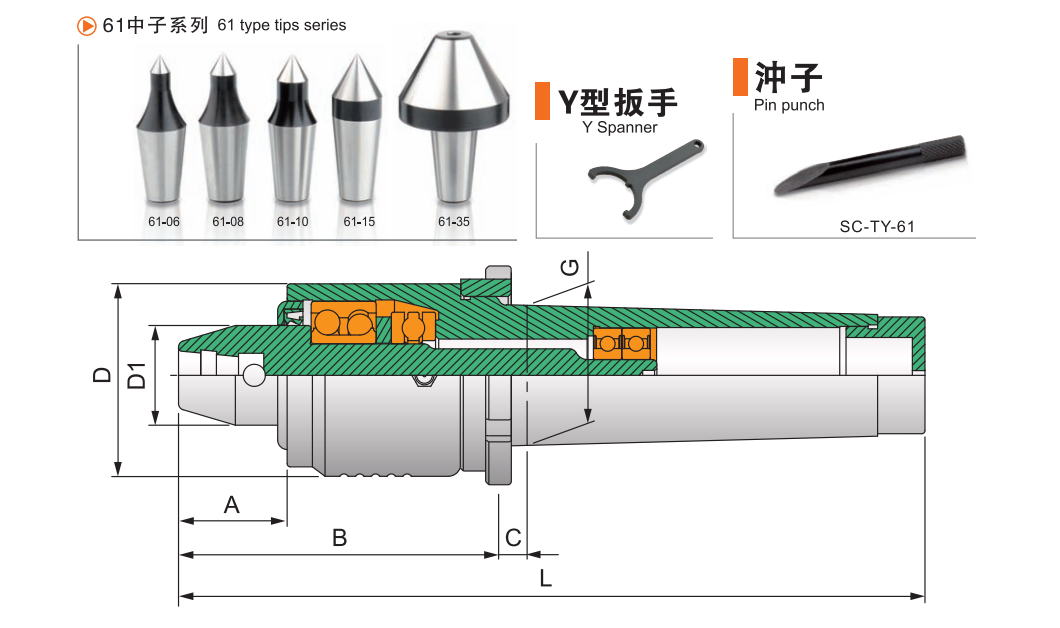

Specification UNIT:mm
| Model/Spec | A | B | C | D | D1 | G | L | Max.RPM | Max. radial load | Max. axial thrust force |
| SC-61-M-3 | 34 | 89 | 8 | 57 | 31.2 | 23.825(MT3) | 176 | 4,500rpm | 1,200kg | 1,800kg |
| SC-61-M-4 | 34 | 89 | 9 | 57 | 31.2 | 31.267(MT4) | 197 | 4,500rpm | 1,300kg | 2,200kg |
| SC-61-M-5 | 34 | 89 | 9 | 57 | 31.2 | 44.399(MT5) | 224 | 4,500rpm | 1,400kg | 2,300kg |
| SC-61-M-3A | 34 | 101 | 8 | 57 | 31.2 | 23.825(MT3) | 188 | 4,500rpm | 1,200kg | 1,800kg |
| SC-61-M-4A | 34 | 101 | 9 | 57 | 31.2 | 31.267(MT4) | 209 | 4,500rpm | 1,300kg | 2,200kg |
| SC-61-M-5A | 34 | 101 | 9 | 57 | 31.2 | 44.399(MT5) | 236 | 4,500rpm | 1,400kg | 2,300kg |
Remarks
1, For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2, if "A" is behind the center model name,it denotes a draw-off nut attached.
3, About radial force data, please refer to workpiece weight and machining force.
4, if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5, About axial force data, please refer to the hydraulic pressure data of the tailstock.
6, For live centers, SKF lubricating oil is designated, it is waterproof.
7, Customized order can be accepted.
8, Subject to technical changes.
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.
