| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | TSC36465-4,TSC36465-5 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | TSC-36465 RETRACTABLE SPRING LIVE CENTER | Material: | Alloy Steel |
|---|---|---|---|
| Function: | High Speed And High Precision Lathe Turning | Feature: | High Quality/High Precision |
| Usage: | Refer To The Specification | Service: | Less Than 0.01mm |
| Highlight: | live center tailstock, wood lathe tailstock live center |
||

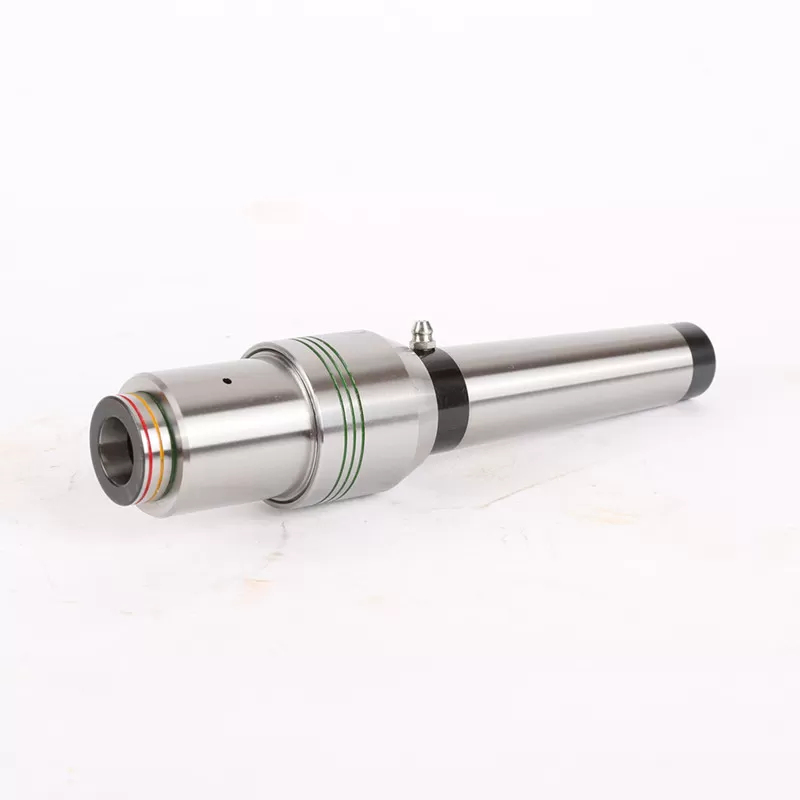

TSC-36465 RETRACTABLE SPRING LIVE CENTER

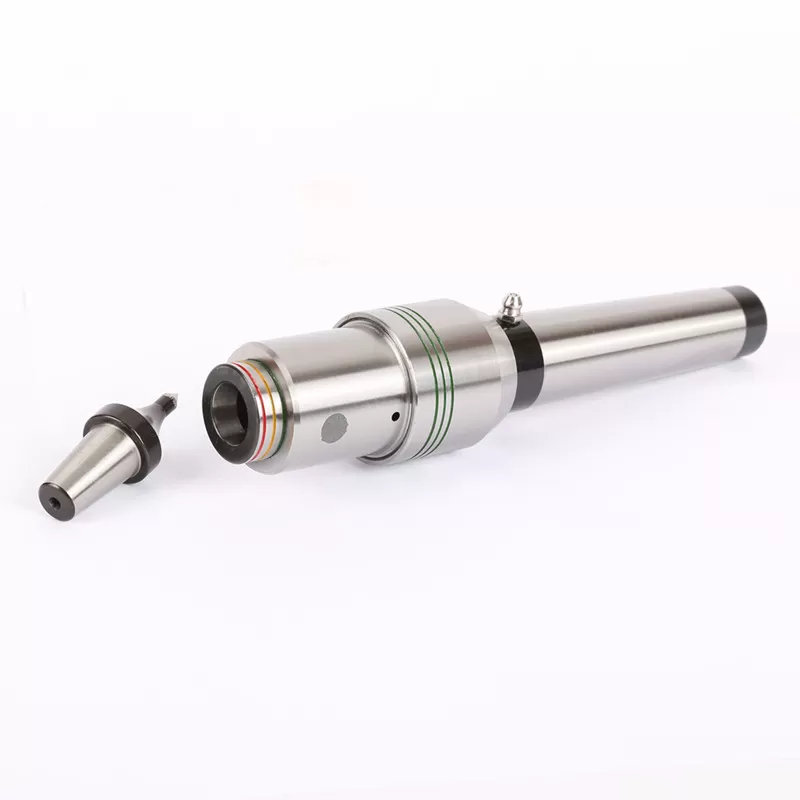

Type: Retractable series,Interchangeable
Application: CNC lathe or grinder and other lathe
Working Usage: The center which retractable feature can response the situation of workpiece length thermal expansion during turning process . So it can avoid deformation.
TIR < 0.01mm

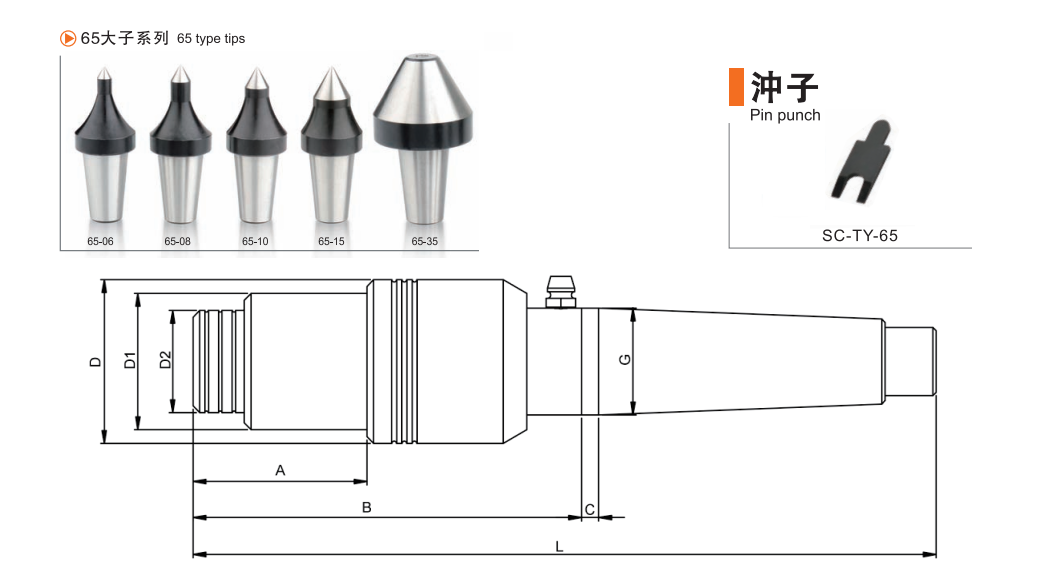

Specification UNIT:mm
| Model/Spec | A | B | C | D | D1 | D2 | G | L |
| TSC36465-4 | 51 | 110 | 9 | 48 | 40 | 30 | 31.267(MT4) | 218 |
| TSC36465-5 | 51 | 131 | 9 | 63 | 40 | 30 | 44.399(MT5) | 266 |
Customized order can be accepted.
Subject to technical changes.
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.
