| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | HK-1036,HK-1246,HK-1552,HK-1875 |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HK SHORT TYPE ROTATING HYDRAULIC CYLINDER WITH THROUGH-HOLE AND SAFETY DEVICE | Material: | -- |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | Light/High Precision/Stable/High Quality |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | rotary air cylinder, precision hydraulic cylinders |
||

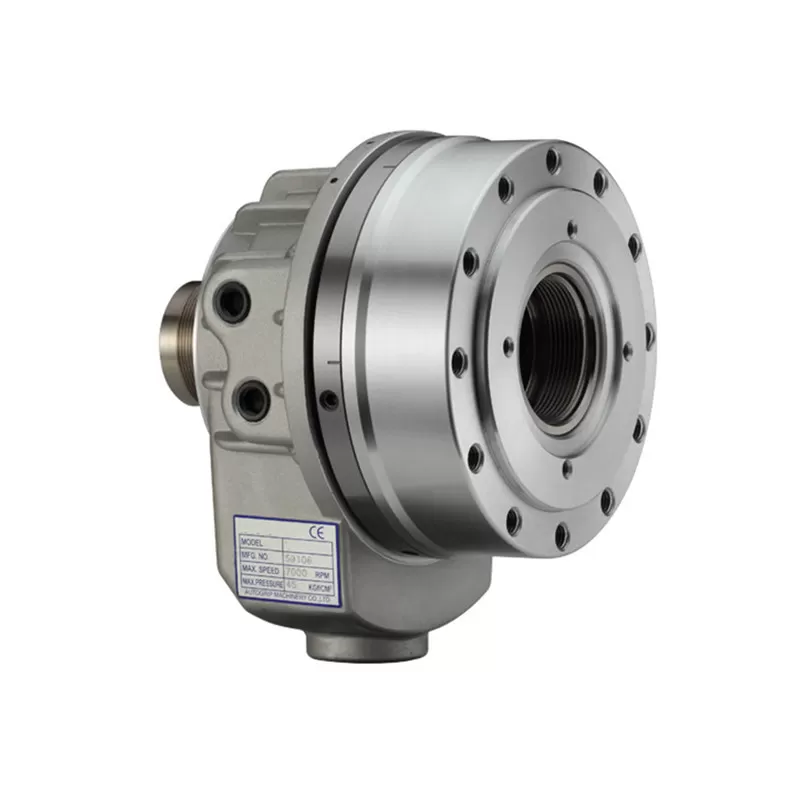

HK SHORT TYPE ROTATING HYDRAULIC CYLINDER WITH THROUGH-HOLE AND SAFETY DEVICE
Brand:NTH
Super short form.light weight large Through-Hole,justas 2/3 of typical model length.
Built-in safety check valves and pressure relief valves.
Forward and backward choose a fixed installation.
Size unit: mm
| Spec Model | Piston area cm2 Extend | Piston area cm2 Retract | Piston stroke mm | Max RPM |
|---|---|---|---|---|
| HK-1036 | 70 | 68 | 12 | 8000 |
| HK-1246 | 100 | 89 | 15 | 7000 |
| HK-1552 | 160 | 150 | 20 | 6200 |
| HK-1875 | 198 | 183 | 25 | 4700 |
| Spec Model | Max.Operating Pressure Mpa(kgf/cm2) | I kg*m2 | Weight kg | Total Leakage L/min |
|---|---|---|---|---|
| HK-1036 | 4.0(40) | 0.012 | 9 | 3 |
| HK-1246 | 4.0(40) | 0.019 | 11 | 3 |
| HK-1552 | 4.0(40) | 0.032 | 17.3 | 3.9 |
| HK-1875 | 4.0(40) | 0.065 | 26.5 | 4.2 |

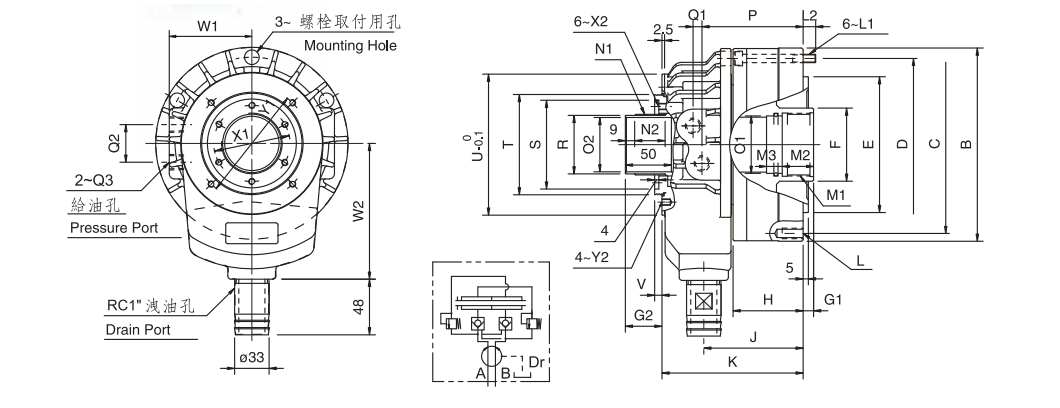

Spec Model | A ID | B | C | D | Eh7 | F | G1 Max | G1 Min | G2 Max | G2 Min | H | J | K | L | L1 | L2 | M1 | M2 | M3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HK-1036 | 105 | 150 | 125 | 125 | 110 | 45 | 12 | 0 | 37 | 25 | 50 | 78.5 | 118 | 6~M10×20 | M8×55 | 15 | M42×1.5 | 25 | 13 |
| HK-1246 | 128 | 162 | 147 | 147 | 130 | 65 | 15 | 0 | 40 | 25 | 57 | 85 | 126 | 12~M10×20 | M8×65 | 15 | M42×1.5 | 25 | 13 |
| HK-1552 | 145 | 185 | 170 | 165 | 130 | 70 | 20 | 0 | 45 | 25 | 66 | 95 | 135 | 12~M10×20 | M8×70 | 12 | M42×1.5 | 30 | 15 |
| HK-1875 | 170 | 212 | 190 | 190 | 160 | 98 | 25 | 0 | 50 | 25 | 73 | 107 | 157 | 12~M10×20 | M10×80 | 17 | M42×1.5 | 35 | 15 |
Spec Model | N1 | N2 | O1 H8 | O2 H8 | P | Q1 | Q2 | Q3 | R G7 | S H7 | T | U | V | W1 | W2 | X1 | X2 | Y1 | Y2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HK-1036 | M44×1.5P | 26 | 35 | 36 | 80 | 8.5 | 30 | RC1/4 | 37 | 62 | 70 | 98 | 6 | 62 | 110 | 49 | M6×6 | 83 | M5×6 |
| HK-1246 | M52×1.5P | 29 | 50 | 46 | 88 | 8.5 | 36 | RC3/8 | 50 | 76 | 85 | 116 | 6 | 75 | 120 | 64 | M6×6 | 98 | M5×6 |
| HK-1552 | M58×1.5P | 29 | 55 | 52 | 97 | 8.5 | 36 | RC3/8 | 56 | 85 | 96 | 128 | 7 | 80 | 130 | 73 | M6×7 | 110 | M6×6 |
| HK-1875 | M84×2P | 33 | 80 | 75 | 109 | 12 | 40 | RC1/2 | 51 | 108 | 121 | 164 | 7 | 98 | 160 | 98 | M6×6 | 155 | M6×6 |
Subject to technology changes without prior information
Non-standard requirements can be made
