| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | RQ-130B,RQ-170B |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | RQ-B DOUBLE ROD PISTON THROUGH HOLE ROTATING AIR CYLINDER | Material: | -- |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | Light/High Precision/Stable/High Quality |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | rotary air cylinder, precision hydraulic cylinders |
||

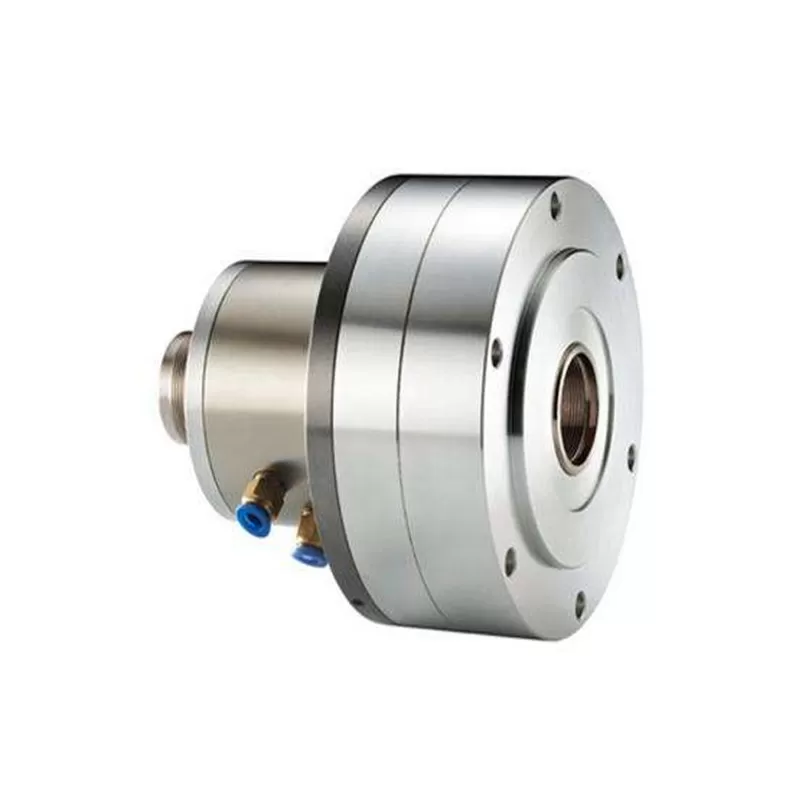

RQ-B DOUBLE ROD PISTON THROUGH HOLE ROTATING AIR CYLINDER
Brand:NTH
Large through hole for long workpiece working,and double piston design,the pull force doubled.
Light weight and high rotating speed,special designed valve which economize air consumption,the cost is saved.
The components of cylinder is imported and high quality,equilibrium running and long service life.
For special large through hole can be customized according to your requirements.
During using,a little oil mist should be contained.
Size unit: mm
| Spec Model | Piston area cm2 Extend | Piston area cm2 Retract | Piston stroke mm | Max RPM |
|---|---|---|---|---|
| RQ-130B | 223.03 | 219.3 | 15 | 5000 |
| RQ-150B | 291.19 | 281.76 | 15 | 4500 |
| RQ-170B | 381.52 | 371.3 | 15 | 4500 |
| Spec Model | Max.Operating Pressure Mpa(kgf/cm2) | Max push force Kgf(KN) | Max pull force Kgf(KN) | I kg*m2 | Weight kg |
|---|---|---|---|---|---|
| RQ-130B | 0.8(8) | 1784.24(17.5) | 1754.4(17.2) | 0.04 | 12 |
| RQ-150B | 0.8(8) | 2329(22.83) | 2254.1(22.09) | 0.06 | 10.3 |
| RQ-170B | 0.8(8) | 3052.1(29.91) | 2970.4(29.11) | 0.09 | 12.5 |

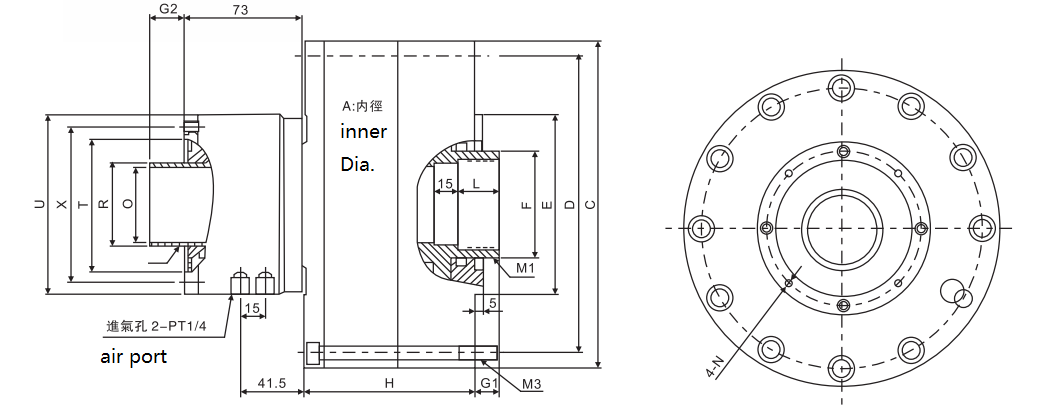

Spec Model | A | B | D | E H7 | F1 | G1 Max. | G1 Min. | G2 Max. | G2 Min. | H | L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RQ-130B | 130 | 160 | 143 | 110 | 50 | 15 | 0 | 38 | 23 | 105 | 25 |
| RQ-150B | 150 | 180 | 163 | 110 | 65 | 15 | 0 | 35 | 20 | 105 | 25 |
| RQ-170B | 170 | 200 | 182 | 110 | 65 | 15 | 0 | 34 | 19 | 107 | 25 |
| Spec Model | M1 | M2 | M3 | O H7 | N | R | T | U | X |
|---|---|---|---|---|---|---|---|---|---|
| RQ-130B | M38×1.5 | M44×1.5 | 6-M8×115 | 34 | M5×10 | 42 | 74 | 104 | 90 |
| RQ-150B | M55×2 | M52×1.5 | 6-M8×115 | 46 | M6×10 | 50 | 86 | 123 | 110 |
| RQ-170B | M55×2 | M52×1.5 | 6-M8×120 | 46 | M6×10 | 50 | 86 | 123 | 110 |
Subject to technology changes without prior information
Non-standard requirements can be made
Production Catalogue Download:RQ-B Series.pdf
