| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | JDS-60,JDS-100,JD-60,JD-100 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | JDS SERIES DIAPHRAGM STATIONARY CHUCK | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Quality /High Precision | |
| Usage: | Fixture/Gripping | Service: | ODM/OEM Is Available |
| Highlight: | lathe collet chuck, cnc collet chuck |
||

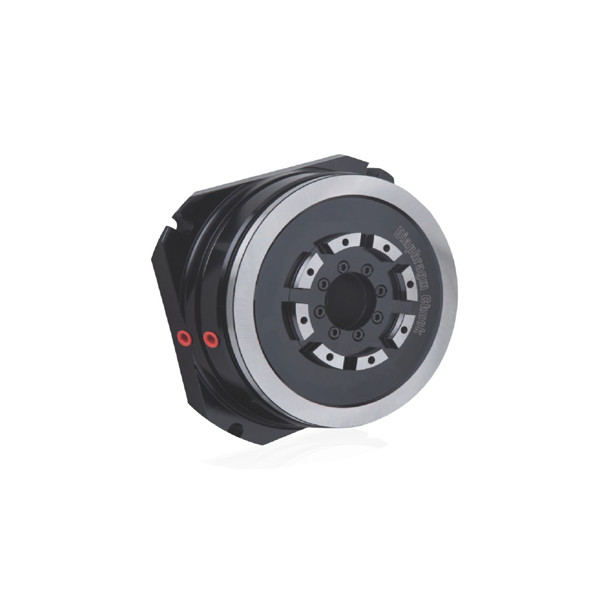

JDS SERIES DIAPHRAGM STATIONARY CHUCK
JDS SERIES DIAPHRAGM STATIONARY CHUCK
Brand:NTH
Steel body,Super long working life
Big through hole,can meet 40mm
Stepless clamping,the clamping force can be fine adjusted
It can be applied for clamping out diameter and expanding internal diameter

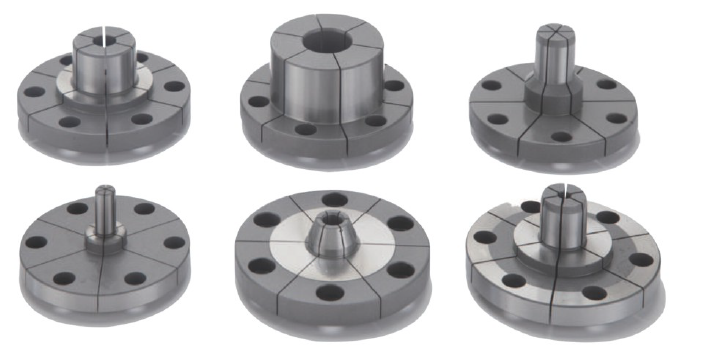

After changing the diaphragm jaw,no need recheck the accuracy
High resistant to cutting chips,fluid and dust

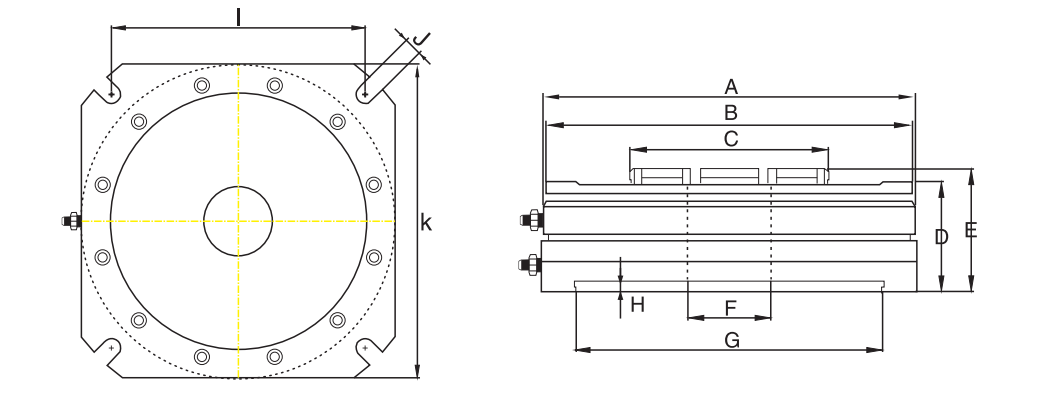

Unit:mm
Model Spec | Kg/cm2 | Diaphragm | N.W.Kg | A | B | C | D | E | F | G | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JDS-60 | 0.5-7 | JD-60 | 3.5 | 118 | 115 | 60 | 44.5 | 48 | 20 | 90 | 4 | 97 | 9 | 118 |
| JDS-100 | 0.5-7 | JD-100 | 10 | 188 | 185 | 100 | 55 | 59.5 | 40 | 155 | 5 | 153 | 11 | 190 |
Subject to technology changes without prior information
Non-standard requirements can be made
