| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | JAP207-42BZI,CHP206-SS42 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | ROTARY COLLET CHUCK WITH RUBBER FLEX COLLET | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Fixture/Gripping | Service: | ODM/OEM Is Available |
| Highlight: | lathe collet chuck, hydraulic collet chuck |
||
ROTARY COLLET CHUCK WITH RUBBER FLEX COLLET
ROTARY COLLET CHUCK WITH RUBBER FLEX COLLET

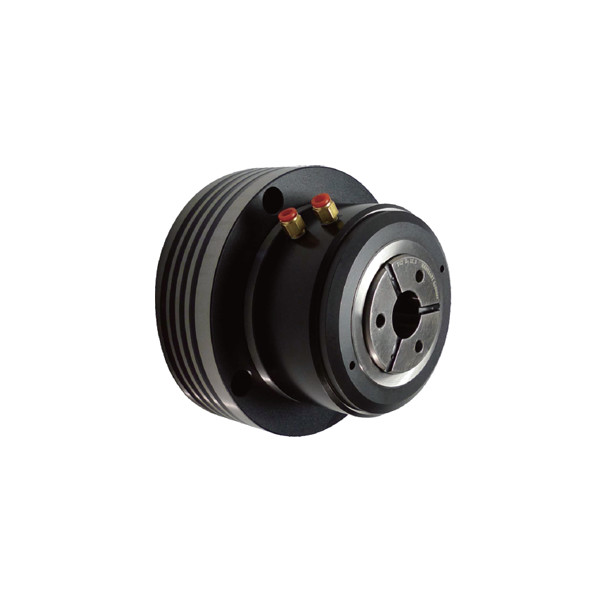

JAP207-42BZI AIR COLLET CHUCK FOR HAINBUCH STYLE COLLETS
Adopts Hainbuch style clamping heads.
Built-in rotary air cylinder.
Precision pull-backd collet chuck: 0.010mm repeatability.
Chuck is with through hole for bar parts.
Double piston: large gripping force.
High resistance to coolant fluid and chips penetration.
JAP207-42BZI

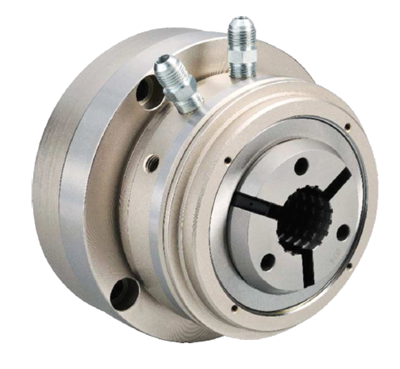

CHP206-SS42 HYDRAULIC COLLET CHUCK FOR ROTARY TABLES / INDEXING TABLES
Used on CNC machine or Grinding machine or 4 axis or 5 axis rotary table.
Adopts Hainbuch style clamping heads.
Built-in rotary hydraulic cylinder.
Precision pull-back collet chuck: 0.010mm repeatability.
Special for rotary tables / indexing tables.
Real front-mounting design allows easy installation.
Hydraulic actuated: large gripping force.
CHP206-SS42

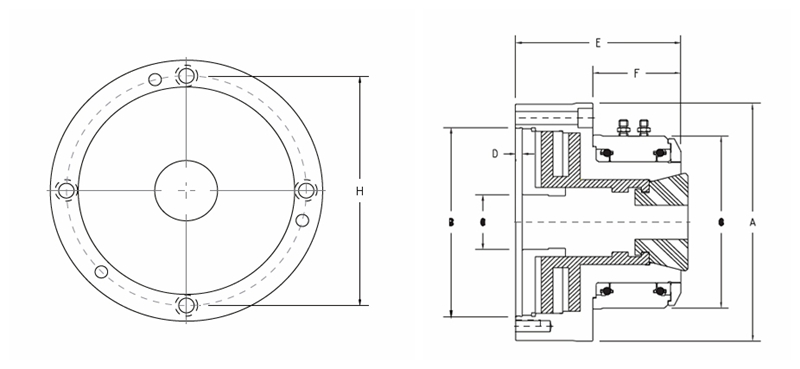

| Model | JAP207-42BZI | CHP206-SS42 |
|---|---|---|
| Air/Hydraulic | Air | Hydraulic |
| A | 197(7.75〞) | 166(6.54〞) |
| B | 155(6.10〞) | 130(5.12〞) |
| C | 42(1.65〞) | 42(1.65〞) |
| D | 4.5(0.18〞) | 4.5(0.18〞) |
| E | 146(5.75〞) | 100(3.94〞) |
| F | 69(2.72〞) | 52(2.05〞) |
| G | 146(5.75〞) | 135(5.31〞) |
| H(P.C.D) | 172(6.77〞) | 147(5.79〞) |
| Mounting bolts | 3H-M10(Front) 3H-M10(Rear) | 4H-M10(Front) |
| Working collet | SZM SS42 COLLET | SZM SS42 COLLET |
| Max RPM | 2500 | 100 |
| Air Pressure | 3-7kg/cm²(40-100psi) | 10-30kg/cm²(143-500psi) |
| Max clamping dia | 42mm(1.65〞) | 42mm(1.65〞) |
| Piston Area | 256cm²(40.0in²) | 66cm²(10.2in²) |
| Clamping force | 5572kgf@7kg/cm² (12258lbf@100psi) | 5669kgf@30kg/cm² (12472lbf@428psi) |
| N.W. | 20kgs(44lbs) | 10kgs(22lbs) |

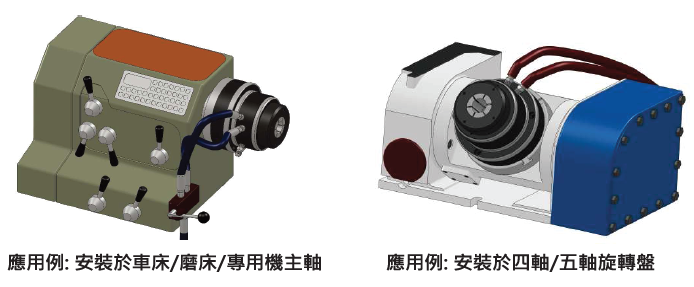

ROTARY CYLINDER BUILT-IN TYPE COLLET CHUCK APPLICATION
Subject to technology changes without prior information
Non-standard requirements can be made
