| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | T-05,T-06,T-08,T-10,T-12, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HIGH QUALITY STANDARD T NUTS FOR THROUGH HOLE POWER CHUCK | Material: | Alloy Steel |
|---|---|---|---|
| Function: | Mount And Fix Chuck Jaws | Feature: | High Quality /High Precision/Abrasion Proof |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | milling machine t nuts, chuck jaw nuts |
||

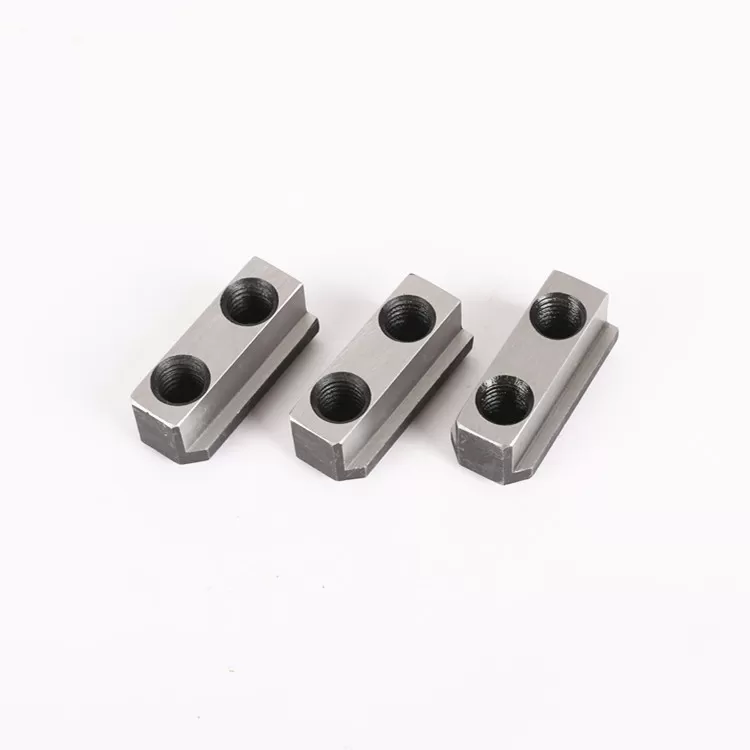

HIGH QUALITY STANDARD T NUTS FOR THROUGH HOLE POWER CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
Advantages
1, For standard T-nuts, the material is high quality steel, hardened and ground.
2, Precision size can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.
Subject to technical changes

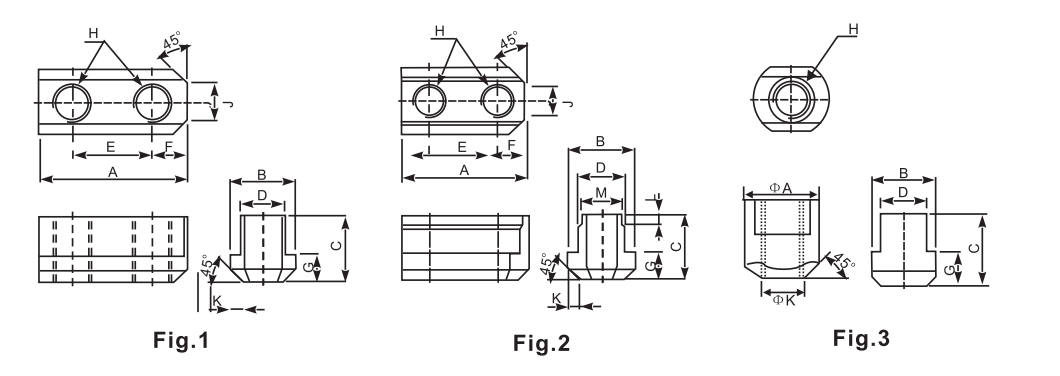

| CHUCK TYPE | Size | A | B | C | D | E | F | G | H | J | K | L | M | Fig |
| Thru | T-05 | 26 | 14.5 | 15 | 10 | 14 | 6 | 5.5 | M8 | 5 | 2 | 8 | 22 | 1 |
| Thru | T-06 | 36 | 17.5 | 18.5 | 12 | 20 | 8.2 | 7.5 | M10 | 8 | 2.5 | 8 | 22 | 1 |
| Thru | T-08 | 46.5 | 20.5 | 20.5 | 14 | 25 | 10.5 | 8.5 | M12 | 12 | 4 | 8 | 22 | 1 |
| Thru | T-10 | 51 | 22.5 | 21.5 | 16 | 30 | 11 | 8.5 | M12 | 11 | 3 | 8 | 22 | 1 |
| Thru | T-12 | 55.5 | 29.5 | 27.5 | 21 | 30 | 12 | 11.5 | M16 | 13 | 4.5 | 8 | 22 | 1 |
| Thru | T-1518 | 80 | 33.5 | 45.5 | 24 | 43 | 17 | 16.5 | M20 | 11 | 5 | 8 | 22 | 2 |
