| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | TSC-9061-4 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | TSC-9061 INTERCHANGEABLE MEDIUM DUTY LIGHT TYPE LIVE CENTER | Material: | Alloy Steel |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | High Quality/High Precision |
| Usage: | High Speed And High Precision Lathe Turning | Service: | Less Than 0.005mm |
| Highlight: | lathe tailstock live center, live center tailstock |
||

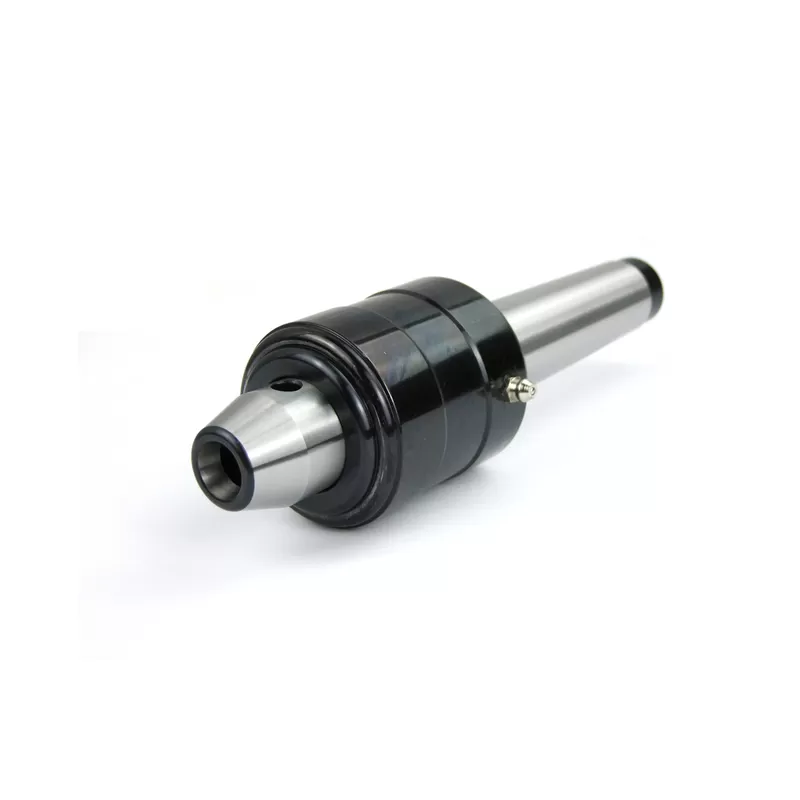

TSC-9061 INTERCHANGEABLE MEDIUM DUTY LIGHT TYPE LIVE CENTER
Application: CNC lathe and high speed lathe or other lathe machine.
Working Usage: Applicable for the length less than 400mm, and light turning process.
Accessories: 61 type Tips and 61 type pin punch
TIR: Less than 0.005mm

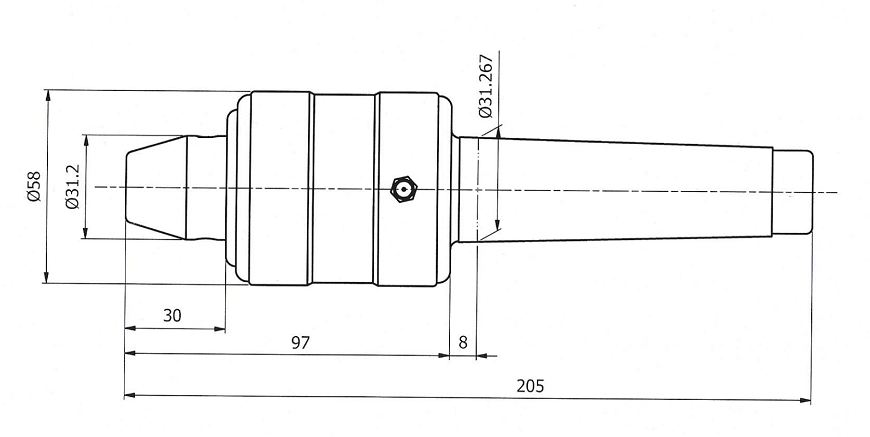

| Model/Spec | MT | Max. RPM | Max. radial load | Max. axial thrust force |
| TSC-9061-4 | 31.267(MT4) | 3500 | 1000 | 1500 |
Production Catalogue Download:
Manual and Techinical instruction.pdf
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.
Subject to technology changes without prior information
Non-standard requirements can be made
