| Product Name: | LL-A Push Type Collet Chuck With Taper For Direct Mounting On Spindle Nose | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Quality /High Precision | |
| Usage: | Gripping/Fixture | Service: | ODM/OEM Is Available |
| Highlight: | Direct Mounting Collet Chuck, LL-A Collet Chuck, Taper Collet Chuck |
||

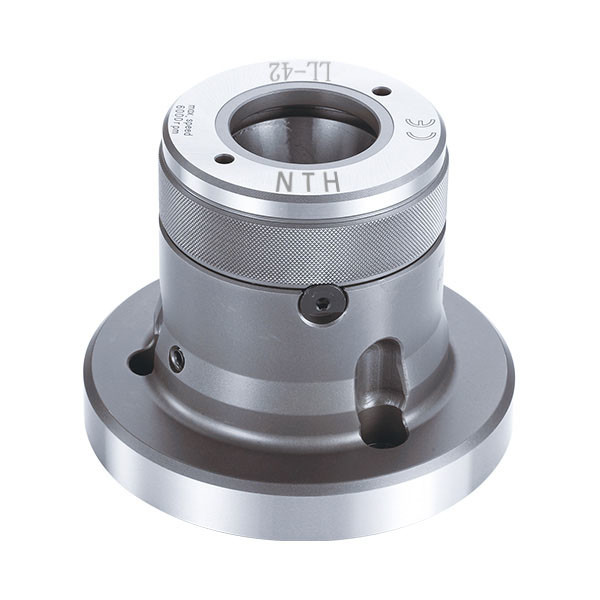

LL-A Push Type Collet Chuck With Taper For Direct Mounting On Spindle Nose
It‵s a push type collet chuck, suitable for turning machine, CNC, or other tools machines.
Construction of high rigidity and high clamping accuracy and high rotary speed.
Taper connection model, it can be installed onto the related spindle nose directly.
The connecting spec is same as other "Through-hole power chuck", No need to change the "Draw tube".

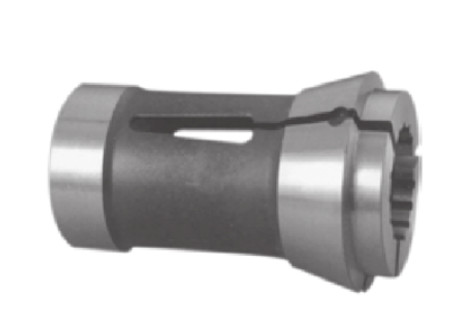

It goes with the DIN 6343 standard collet.
Production Catalogue Download:LL-A SERIES.pdf
(unit: mm)
| Spec/Model | Plunger stroke mm | Grip Round | Grip Hex. | Grip Sq. | Max.D.B.Pull kgf | Max clamping force kgf |
| LL-30 A4 | 5 | 3~30 | 4~27 | 4~22 | 19.6(2000) | 42.1(4300) |
| LL-36 A5 | 6 | 3~37 | 6~32 | 6~26 | 22.5(2300) | 48.5(4950) |
| LL-42 A5 | 7 | 3~42 | 6~36 | 6~28 | 24.5(2500) | 52.9(5400) |
| LL-42 A6 | 7 | 3~42 | 6~36 | 6~28 | 24.5(2500) | 52.9(5400) |
| LL-52 A6 | 7 | 5~52 | 8~45 | 7~36 | 27.4(2800) | 59.0(6020) |
| LL-60 A6 | 7 | 5~60 | 8~50 | 7~40 | 29.4(3000) | 63.7(6500) |
| LL-65 A6 | 7 | 5~67 | 8~58 | 7~47 | 29.4(3000) | 63.7(6500) |
| LL-80 A8 | 7 | 20~80 | 18~69 | 15~56 | 34.3(3500) | 71.5(7300) |
| Spec/Model | Max RPM | Inertia moment kg*m2 | Weight kg | Matched Collet | Matched cylinders | Max Pressure Mpa(kgf/cm2) |
| LL-30 A4 | 8000 | 0.038 | 4.1 | 163E | H-1036 | 2.9(29) |
| LL-36 A5 | 6000 | 0.058 | 6.3 | 171E | H-1246 | 2.5(25) |
| LL-42 A5 | 6000 | 0.057 | 6.1 | 173E | H-1246 | 2.9(29) |
| LL-42 A6 | 6000 | 0.061 | 7.5 | 173E | H-1246 | 2.9(29) |
| LL-52 A6 | 6000 | 0.093 | 13.8 | 177E | H-1552 | 2.3(23) |
| LL-60 A6 | 5000 | 0.091 | 13.5 | 185E | H-1875 | 1.8(18) |
| LL-65 A6 | 5000 | 0.104 | 14.5 | 185E | H-1875 | 1.8(18) |
| LL-80 A8 | 4000 | 0.12 | 19.8 | 193E | H-2091 | 1.6(16) |

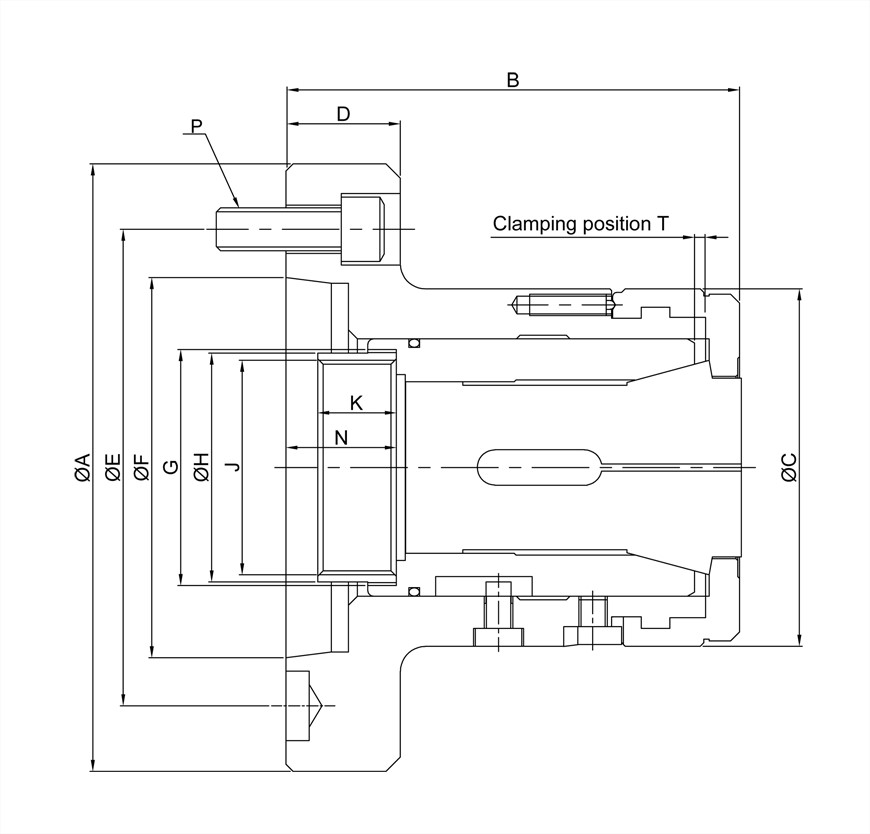

| Spec/Model | A | B | C | D | E | F | G | H | J Max | K | N | P | T |
| LL-30 A4 | 110 | 103.5 | 85 | 30 | 82.55 | 63.515 | M55x1.5 | 45 | M40x1.5 | 15 | 21.7 | 3~M10×30 | 2.3 |
| LL-36 A5 | 135 | 130 | 100 | 27 | 104.78 | 82.563 | M66x1.5 | 60 | M55x2.0 | 17.5 | 30.9 | 4~M10×30 | 3.1 |
| LL-42 A5 | 135 | 127 | 100 | 27 | 104.78 | 82.563 | M66x1.5 | 60 | M55x2.0 | 25 | 30.9 | 4~M10×30 | 3.1 |
| LL-42 A6 | 165 | 127 | 100 | 32 | 133.35 | 106.375 | M66x1.5 | 66 | M60x2.0 | 22 | 30.9 | 4~M12×30 | 3.1 |
| LL-52 A6 | 170 | 144 | 130 | 27 | 133.35 | 106.375 | M90x1.5 | 66.7 | M60x2.0 | 30 | 29.9 | 4~M12×35 | 3.1 |
| LL-60 A6 | 170 | 145 | 130 | 27 | 133.35 | 106.375 | M90x1.5 | 80 | M74x2.0 | 30 | 29.9. | 4~M12×35 | 3.1 |
| LL-65 A6 | 210 | 135 | 136 | 27 | 133.35 | 106.375 | M95x1.5 | 81 | M75x2.0 | 20 | 29.9 | 4~M16×40 | 3.1 |
| LL-80 A8 | 210 | 170 | 136 | 35 | 171.45 | 139.719 | M114x2.0 | 99 | M90x2.0 | 27.5 | 32.4 | 6~M16×40 | 3.1 |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
